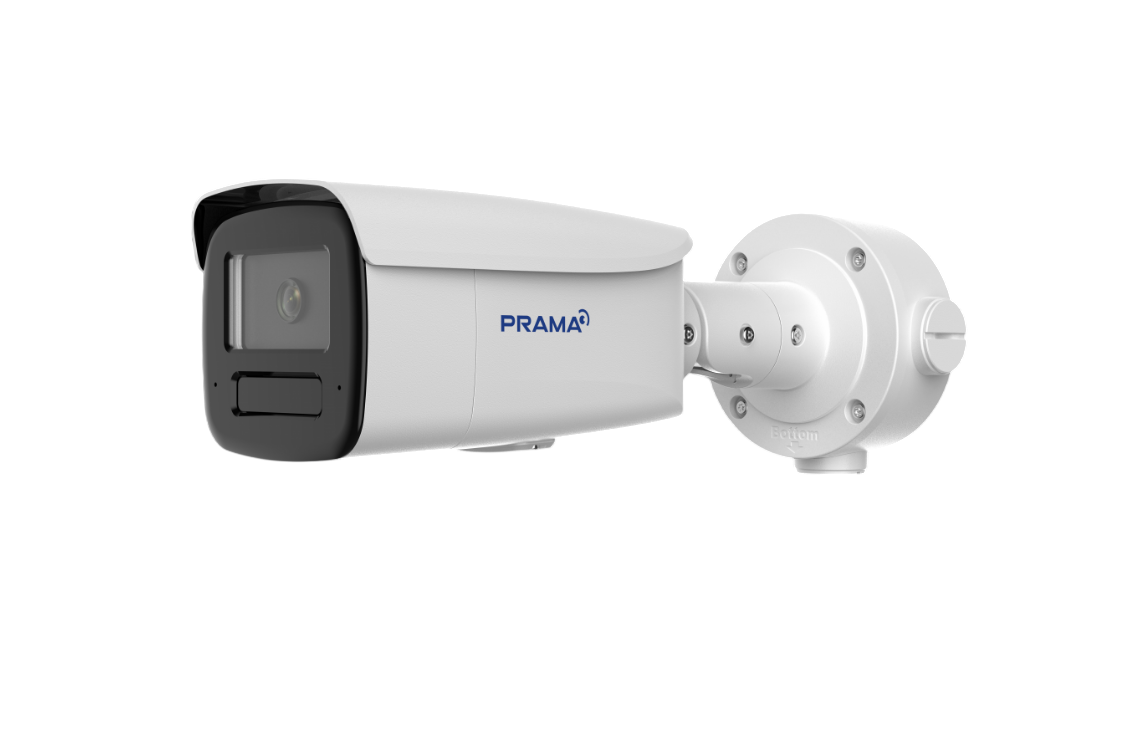

PRAMA Aisense 6MP Fixed Bullet IP Camera PT-NC36TP3-4NAM(D2) | 4/6mm Lens, 90m IR, Human/Vehicle Detection, Built-in Mic, H.265, IP67 IK10, PoE, 512GB SD, STQC Approved

PRAMA PT-NC36TP3-4NAM(D2) is a 6MP Aisense fixed bullet network camera featuring 4mm/6mm lens options, long-range IR up to 90m, and intelligent human/vehicle detection. With 120dB WDR, built-in microphone, IP67 weatherproofing, IK10 vandal resistance, and support for up to 512GB microSD storage, it is ideal for high-performance outdoor surveillance.

Pick up from the FGTECH Store

To pick up today

0-1 Days

Courier delivery

Our courier will deliver to the specified address

4-7 Days

Porter / WeFast

Currently available only in Mumbai

0-1 Days

To be paid directly to service vendor

Fast Delivery ( By Air )

We will ship from your product By Air to nearest center to speed up the delivery

2-4 Days

Start from Rs250 Extra

SKU: FGINXL3NMLA4 Categories: IP Cameras, Surveillance and Security

Similar Products

-54% STQC Certified

CP PLUS 6MP IP Dome Camera CP-UNC-DA61L3C-LQ

Quick view

CP PLUS 6MP IP Dome Camera CP-UNC-DA61L3C-LQ | Dual Light, Built-in Mic, IP67, POE, STQC APPROVED, 2 Year Warranty (3.6 mm)

Rated 0 out of 5

In stock

Inc. tax (₹4,321.19Exc. Tax)

Add to cart

SKU: FGINH9F2Y7JP

Weight	0.28 kg
Dimensions	10.9 × 8.55 × 8.55 cm
Brand	CP Plus
Model	CP-UNC-DA61L3C-LQ
Distance	30m
Focal Length	3.6mm
Use Case	Surveillance Cameras
Warranty	2 Years
Certification	STQC
Badges	STQC Certified

-48%

Quick view

Tp-Link InSight S385 2.8mm

Rated 0 out of 5

Out of stock

Inc. tax (₹7,880.51Exc. Tax)

SKU: FGINQSK5H9KL

Weight	0.525 kg
Dimensions	7.2 × 2.9 × 2.9 cm
Brand	TP-Link
Model	InSight S385 2.8mm
Focal Length	2.8mm

-55% 24Hr Dispatch

TP-Link VIGI C355 IP Camera - 4mm Lens image 6

Quick view

TP-Link VIGI C355 4mm 5MP Outdoor Full-Color Bullet Network Camera

Rated 0 out of 5

Out of stock

Inc. tax (₹5,338.14Exc. Tax)

SKU: FGIN2XW2L7JJ

Weight	0.71 kg
Dimensions	2 × 13 × 10 cm
Badges	24Hr Dispatch
Model	C355 4mm

Description

The PRAMA PT-NC36TP3-4NAM(D2) is a high-performance 6MP Aisense bullet network camera designed for intelligent and long-range surveillance applications. Equipped with a 1/2.5″ progressive scan CMOS sensor and a maximum resolution of 3200 × 1800, it delivers sharp and detailed video output across various lighting conditions. Advanced imaging technologies such as 120 dB true WDR and 3D DNR ensure clear visibility even in challenging environments like strong backlight, shadows, and low-light scenes.

PT-NC36TP3-4NAM(D2) is powered by Aisense AI technology, the camera accurately distinguishes humans and vehicles from other moving objects, significantly reducing false alarms and improving monitoring efficiency. The fixed lens options (4mm and 6mm) provide flexible deployment depending on coverage requirements, while long-range IR illumination up to 90 meters ensures excellent night-time visibility. PT-NC36TP3-4NAM(D2) also features built-in microphone support for real-time audio monitoring, along with advanced smart events such as intrusion detection, line crossing, unattended baggage detection, and region-based alerts for enhanced security intelligence.

Built for demanding outdoor environments, the PT-NC36TP3-4NAM(D2) features a durable metal housing with IP67 weatherproofing and IK10 vandal resistance for maximum protection. PT-NC36TP3-4NAM(D2) supports up to four video streams with efficient H.265/H.264 compression, ensuring optimized bandwidth and storage usage. Additional features include PoE support for easy installation, microSD storage up to 512GB, NAS compatibility, advanced network security (TLS 1.3, HTTPS), and support for up to 32 users. With powerful AI analytics, long-range illumination, and enterprise-grade reliability, the PT-NC36TP3-4NAM(D2) is ideal for high-security and large-area surveillance deployments.

Best Suited For

Long-range outdoor surveillance (up to 90m IR)
High-security areas (warehouses, factories, campuses, parking areas)
Installations requiring AI-based human/vehicle detection
Perimeter protection and smart event monitoring
Environments needing rugged, vandal-resistant cameras

Not Suited For

Indoor discreet installations (bullet form factor is visible)
Applications requiring motorized zoom (fixed lens only)
Installations needing built-in speaker or two-way audio
Short-range basic surveillance setups (overkill features)

Product Details

Category	Parameter	Specification
Camera	Image Sensor	1/2.5" Progressive Scan CMOS
	Max. Resolution	3200 × 1800
	Minimum Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
	Shutter Time	1/3 s to 1/100,000 s
	Day/Night	IR cut filter
	Angle Adjustment	Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°
Lens	Lens Type	Fixed lens (4 mm, 6 mm optional)
	Lens Mount	M12
	Iris Type	Fixed
	Aperture	F1.6
	Depth of Field	4 mm: 3.1 m to ∞, 6 mm: 6.4 m to ∞
DORI	4 mm	D: 115 m, O: 45 m, R: 23 m, I: 11 m
	6 mm	D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator	Light Type	IR
	Light Range	Up to 90 m
	Smart IR	Yes
	IR Wavelength	850 nm
Video	Main Stream	50 Hz: 25 fps (3200×1800, 2688×1520, 1920×1080, 1280×720)
		60 Hz: 30 fps (same resolutions)
	Sub Stream	50 Hz: 25 fps (1280×720, 640×480, 640×360)
		60 Hz: 30 fps (same resolutions)
	Third Stream	50 Hz: 10 fps (1920×1080, 1280×720, 640×480, 640×360)
		60 Hz: 10 fps (same resolutions)
	Fourth Stream	50 Hz: 10 fps (1280×720, 640×480, 640×360)
		60 Hz: 10 fps (same resolutions)
	Video Compression	Main: H.265/H.264
		Sub: H.265/H.264/MJPEG
		Third: H.265/H.264
		Fourth: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 16 Mbps
	H.264 Profile	Baseline / Main / High
	H.265 Profile	Main Profile
	Bitrate Control	CBR / VBR
	ROI	5 fixed regions
	SVC	H.264 / H.265
	Target Cropping	Yes
Audio	Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
	Audio Bit Rate	64 Kbps (G.711), 16 Kbps (G.722.1/G.726), 32–192 Kbps (MP2L2), 8–320 Kbps (MP3), 16–64 Kbps (AAC-LC)
	Sampling Rate	8 / 16 / 32 / 48 kHz
	Noise Filtering	Yes
	Built-in Mic	Yes
Network	Protocols	TCP/IP, UDP, ICMP, IGMP, Multicast, NTP, DDNS, PPPoE, SNMP, QoS, DHCP, IPv4/IPv6, DNS, HTTP, HTTPS, RTSP, SRTP/RTSPS, Bonjour, WebSocket, NAT, RTCP, RTMP, UPnP, ONVIF, SSH, SMTP, SFTP, ARP
	Simultaneous View	Up to 6 channels
	API	ONVIF (Profile S, G, T)
	Security	HTTPS, TLS 1.3, IP filter, digest auth, WSSE
	Users	Up to 32 users
	User Levels	Administrator, Operator, User
	Network Storage	NAS (NFS, SMB/CIFS), ANR
	Browser Support	IE11 (plugin), Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image	WDR	120 dB
	SNR	≥ 52 dB
	Day/Night Mode	Day / Night / Auto / Schedule
	Image Enhancement	BLC, HLC, 3D DNR
	Privacy Mask	8 programmable areas
Interface	Ethernet	1 RJ45 10/100M
	Storage	microSD/microSDHC/microSDXC up to 512 GB
	Audio I/O	1 input, 1 output
	Alarm I/O	1 input, 1 output (12 VDC, 30 mA)
	Reset Button	Yes
Event	Basic Events	Motion detection (human/vehicle), video tampering, exception
	Smart Events	Intrusion, line crossing, region entrance/exit, unattended baggage, object removal, loitering, gathering, running, parking, scene change, audio exception
	Linkage	FTP/SFTP/NAS/SD, email, alarm output, recording, snapshot
Intelligent Functions	Face Capture	Yes
	Perimeter Protection	Yes (human/vehicle filtering)
General	Power Supply	12 VDC ±25%, 0.87 A, max. 10.5 W
	PoE	IEEE 802.3af, Class 3, max. 12 W
	Material	Metal
	Protection	IP67, IK10
	Operating Conditions	-30°C to 60°C, ≤95% humidity
	Storage Conditions	-30°C to 60°C, ≤95% humidity
	Languages	English, Hindi
	Weight	Approx. 1.23 kg
	With Package Weight	Approx. 1.94 kg
Dimensions	Camera	88.74 mm × 90.45 mm × 317.53 mm
	Package	386 mm × 156 mm × 155 mm
