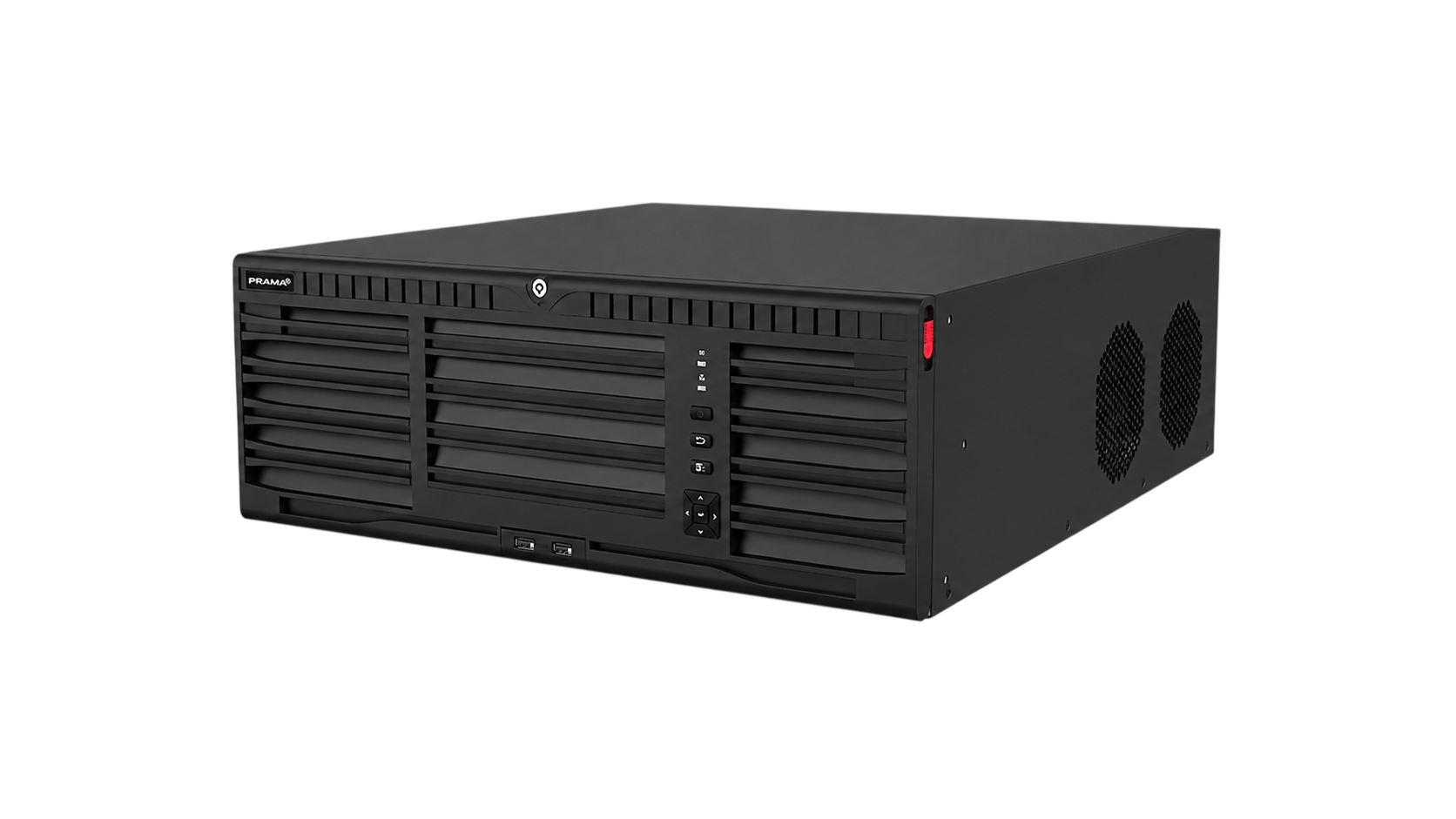

PRAMA 32 Channel NVR PT-NR3A32-M16/R | Up to 32MP | 16 SATA (14tb) | RAID 0/1/5/6/10 | 3 Year Warranty

The PRAMA PT-NR3A32-M16/R is a 32-channel 8K Network Video Recorder designed for professional surveillance deployments requiring high-capacity storage, high-resolution recording, and reliable system operation. PT-NR3A32-M16/R supports up to 32 IP camera inputs and recording resolutions up to 32MP, making it suitable for large-scale monitoring applications. The recorder features dual HDMI and dual VGA outputs with independent display sources, supporting HDMI output resolutions up to 8K (7680 × 4320) and dual 4K displays for detailed live viewing and playback.

The PT-NR3A32-M16/R supports H.265+ compression technology to reduce storage requirements while maintaining video quality. PT-NR3A32-M16/R provides up to 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth for stable multi-camera performance. The recorder supports special camera types including people counting cameras, ANPR (Automatic Number Plate Recognition) cameras, and fisheye cameras. It also supports multiple VCA functions such as motion detection, line crossing detection, intrusion detection, heat mapping, people counting, and ANPR. Additional features include POS information overlay, POS-triggered recording and alarms, dual-stream recording for bandwidth optimization, smooth streaming technology for improved live viewing under poor network conditions, TLS-encrypted stream transmission, and double verification for playback and downloading.

PT-NR3A32-M16/R is designed for high-reliability storage and system redundancy. It supports RAID 0, 1, 5, 6, and 10 configurations, N+M hot spare functionality, and redundant power supplies to help minimize data loss risks. The recorder provides 16 SATA interfaces supporting hot-plug hard drives with capacities of up to 14TB each, delivering a maximum raw storage capacity of 224TB, along with one eSATA interface for additional storage connectivity. Additional interfaces include dual Gigabit Ethernet ports, 16 alarm inputs, 9 alarm outputs, RS-232 and RS-485 ports, dual USB 2.0 ports, dual USB 3.0 ports, one audio input, two audio outputs, one channel of two-way audio, and one CVBS video output. Built in a 3U chassis measuring 44.5 × 49.6 × 15.0 cm and weighing up to 12.5 kg without HDDs, it is designed for continuous surveillance applications that require performance, scalability, and dependable storage protection.

Key Features

• 32-channel IP camera support with recording resolutions up to 32MP
• HDMI output up to 8K (7680 × 4320) with dual HDMI and dual VGA displays
• H.265+ compression with 320 Mbps incoming and 400 Mbps outgoing bandwidth
• RAID 0, 1, 5, 6 and 10 support with N+M hot spare functionality
• 16 SATA bays supporting up to 224TB raw storage capacity plus eSATA expansion
• Redundant power supply with TLS-encrypted streaming and secure playback verification

Best Suited For

• Enterprise and large-scale surveillance deployments with up to 32 IP cameras
• Installations requiring RAID-protected storage and data redundancy
• Control rooms requiring 8K or dual 4K display output
• Projects requiring long-term video retention with up to 224TB storage capacity
• Applications using people counting, ANPR, fisheye cameras, and advanced VCA analytics

Not Suited For

• Small surveillance systems with only a few cameras
• Installations that do not require RAID or redundant storage protection
• Deployments requiring built-in PoE ports for camera connectivity
• Locations with limited rack space for a 3U recorder chassis
• Applications that do not require enterprise-grade storage and bandwidth capabilities
