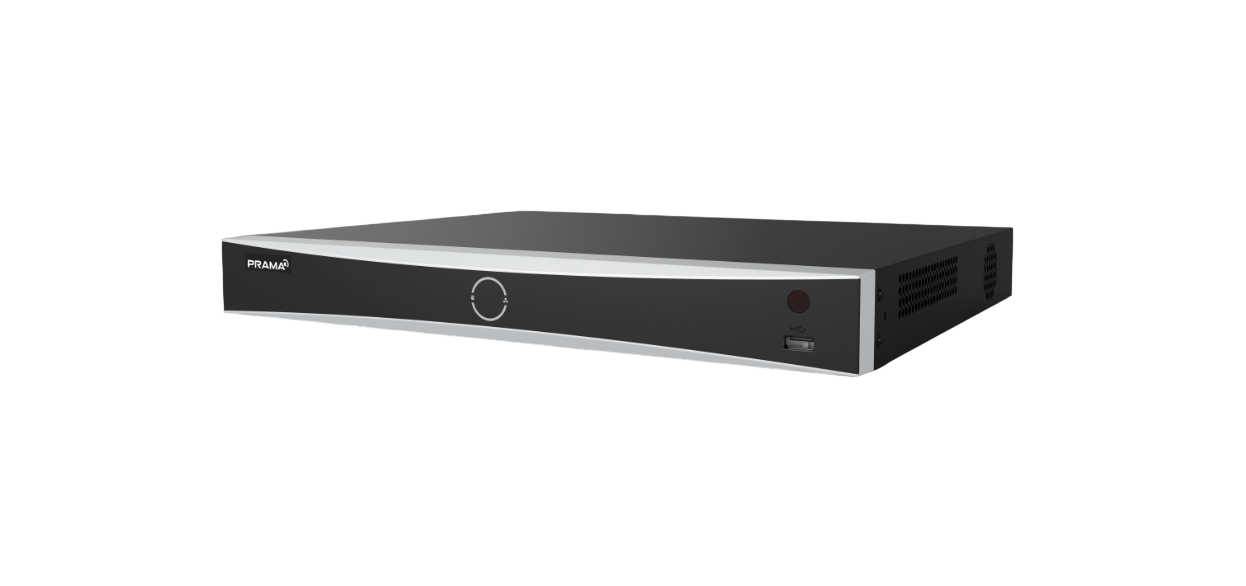

PRAMA 32 Channel NVR PT-NRAS2A32-K2 | Aisense AI | Up to 12MP | 2 SATA (20TB) | H.265+ Technology | 3 Years Warranty

The PRAMA PT-NRAS2A32-K2 is a 32-channel Network Video Recorder (NVR) designed for centralized recording, monitoring, playback, and management of IP surveillance cameras. PT-NRAS2A32-K2 supports up to 32 IP cameras with recording resolutions up to 12MP and provides HDMI output up to 4K (3840 × 2160 @ 30Hz) along with VGA output up to 1920 × 1080 resolution. With HDMI and VGA simultaneous output, multi-screen display capabilities, and 16-channel synchronous playback, the recorder is suitable for surveillance installations requiring reliable monitoring and video management.

The PT-NRAS2A32-K2 supports H.265+, H.265, H.264+, and H.264 video compression technologies to optimize bandwidth and storage utilization while maintaining image quality. PT-NRAS2A32-K2 provides up to 256 Mbps incoming bandwidth and 160 Mbps outgoing bandwidth for stable multi-camera operation. The integrated Aisense analytics platform supports human and vehicle analysis on up to 32 channels and includes face capture, face picture search, and face picture comparison functions. Face analytics supports up to 16 face picture libraries with a maximum capacity of 20,000 face images, helping improve event verification and video investigation efficiency in security environments.

PT-NRAS2A32-K2 features two SATA interfaces supporting hard drives up to 10TB each for local video storage. The recorder includes a Gigabit Ethernet port, HDMI and VGA video outputs, audio input and output ports, 4 alarm inputs, 1 alarm output, dual USB 2.0 ports, and support for two-way audio communication. It supports TCP/IP, DHCP, IPv4, IPv6, DNS, RTSP, HTTPS, SMTP, SNMP, NFS, iSCSI, and other network protocols for integration into IP surveillance systems. Operating on a 12V DC power supply with power consumption below 15W without HDD, the PT-NRAS2A32-K2 is designed for continuous surveillance deployment in commercial, industrial, institutional, and enterprise security applications.

Key Features
• 32-channel IP camera support with recording resolutions up to 12MP
• 4K HDMI output up to 3840 × 2160 @ 30Hz with VGA output up to 1920 × 1080
• H.265+, H.265, H.264+, and H.264 video compression support
• Aisense analytics with human and vehicle analysis on up to 32 channels
• Face capture, face picture search, and face picture comparison functions
• 256 Mbps incoming bandwidth with dual SATA support for up to 10TB per HDD

Best Suited For
• Medium to large IP surveillance installations with up to 32 cameras
• Commercial buildings, offices, warehouses, and industrial facilities
• Projects requiring human and vehicle classification analytics
• Applications requiring face capture and face comparison functions
• Installations needing 4K HDMI display output and 16-channel playback

Not Suited For
• Installations requiring support for more than 32 camera channels
• Systems requiring built-in PoE ports for direct camera connectivity
• Deployments requiring RAID storage configurations
• Analog-only CCTV systems without IP camera integration
• Applications requiring simultaneous Facial Recognition and Motion Detection 2.0 operation
