PRAMA 16 CHANNEL NVR PT-NR2A16-Q1 | Up to 8MP | 1 SATA (6TB) | H.265+ Technology | 160 Mbps Incoming Bandwidth | 3 Year Warranty

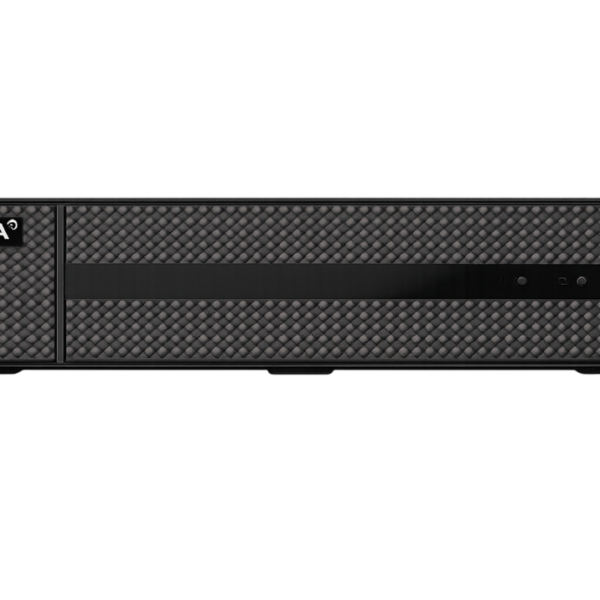

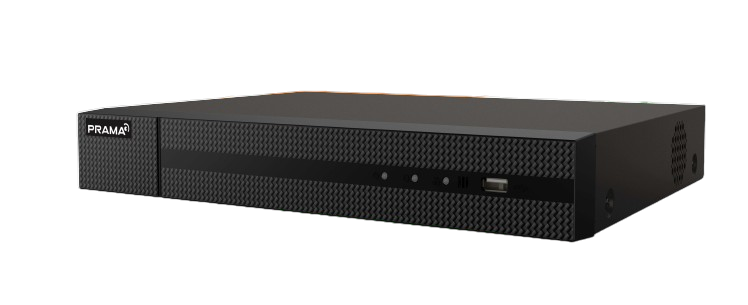

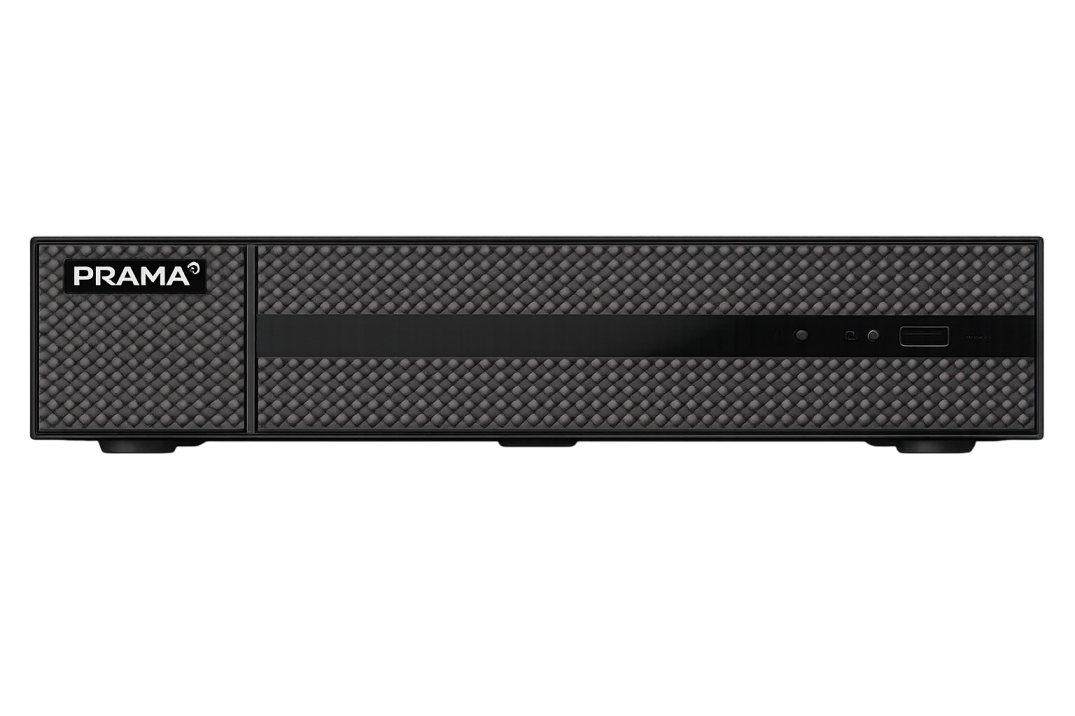

The PRAMA PT-NR2A16-Q1 is a 16-channel Network Video Recorder (NVR) designed for centralized recording, monitoring, playback, and management of IP-based surveillance systems. PT-NR2A16-Q1 supports up to 16 IP cameras with recording resolutions up to 8MP and provides HDMI output up to 4K (3840 × 2160) for high-resolution live viewing and playback. Independent HDMI and VGA outputs enable flexible display configurations for professional surveillance installations.

The PT-NR2A16-Q1 supports H.265+, H.265, H.264+, and H.264 video compression technologies to optimize storage utilization and network bandwidth. With 160 Mbps incoming bandwidth, the recorder can manage multiple high-resolution camera streams simultaneously. It supports up to 16-channel synchronous playback and includes features such as VCA alarm support, smart playback, smart search, two-way audio, configuration import/export, and real-time system information display for efficient surveillance management.

The PT-NR2A16-Q1 features one SATA interface supporting hard drives up to 6TB, a Gigabit Ethernet port for network connectivity, dual USB 2.0 ports, and RCA audio input and output interfaces. Built in a compact 1U chassis, it operates on 12V DC power with a maximum power consumption of ≤18W and ≤10W without an installed hard drive. The unit is designed for continuous operation in IP surveillance environments requiring centralized video recording and monitoring.

Key Features
• 16-channel IP camera support with recording up to 8MP resolution
• 4K HDMI output up to 3840 × 2160 resolution
• H.265+, H.265, H.264+, and H.264 compression support
• 160 Mbps incoming bandwidth for multi-camera deployments
• Up to 16-channel synchronous playback
• 1 SATA HDD support up to 6TB capacity

Best Suited For
• Installations requiring up to 16 IP cameras
• Systems using cameras up to 8MP resolution
• Projects requiring centralized video recording and monitoring
• Deployments requiring 4K display output
• Commercial and professional IP surveillance applications

Not Suited For
• Installations requiring more than 16 camera channels
• Systems requiring built-in PoE ports
• Deployments requiring RAID storage support
• Projects requiring more than one HDD bay
• Analog-only surveillance systems without IP camera integration
