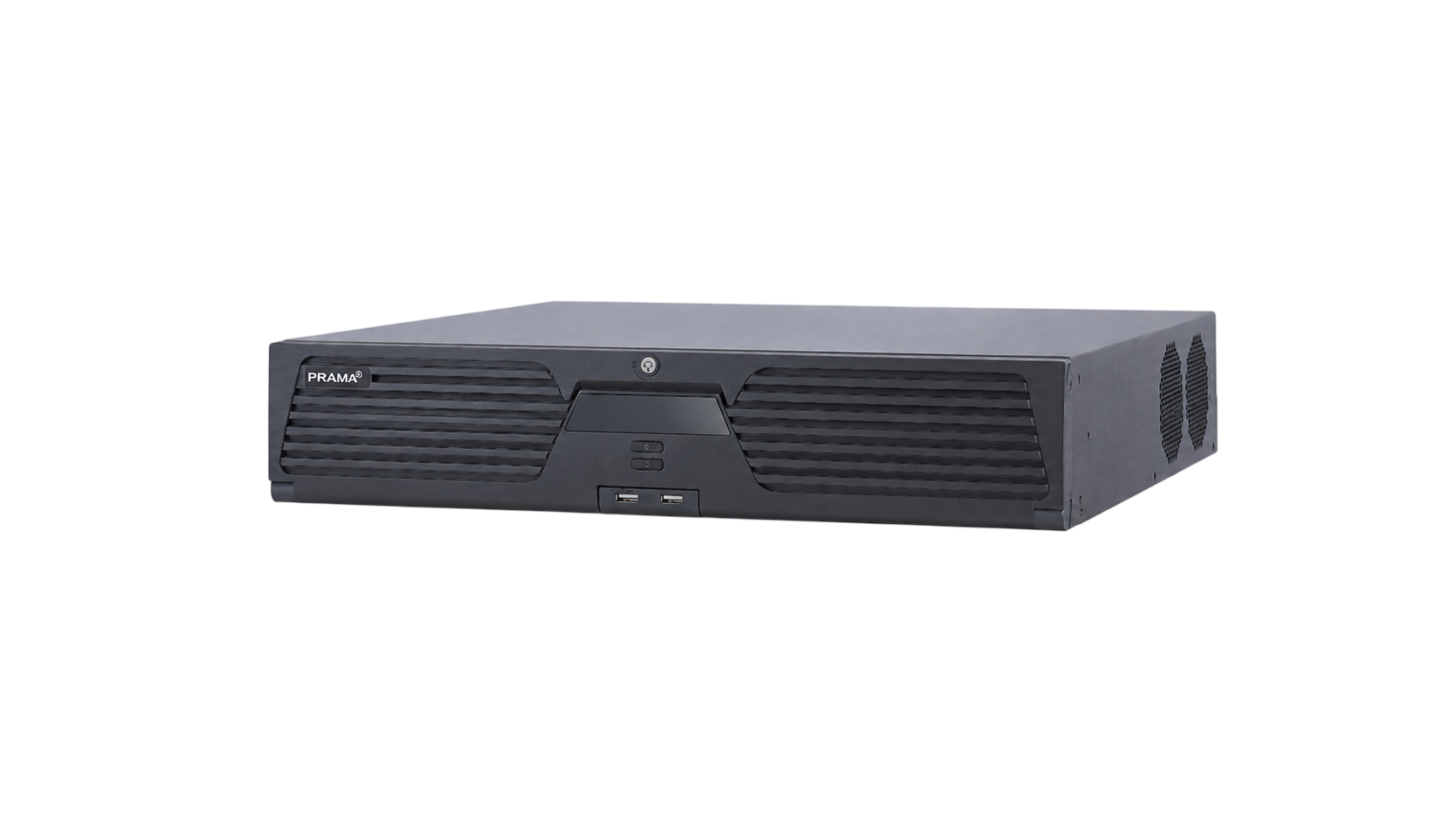

The PRAMA PT-NRAS3A32-I8/S is a 32-channel Intelligent Series Network Video Recorder designed for surveillance deployments requiring intelligent analytics, high-capacity storage, and reliable continuous operation. Supporting up to 32 IP camera inputs with resolutions up to 12MP, the PT-NRAS3A32-I8/S is suitable for enterprise, commercial, industrial, and institutional security applications. The recorder provides dual HDMI outputs and a VGA output, with HDMI 1 supporting resolutions up to 4K (3840 Ă— 2160) at 60Hz for detailed live viewing and playback. Independent and simultaneous display modes provide flexible monitoring configurations for multi-screen surveillance environments.
The PT-NRAS3A32-I8/S utilizes intelligent algorithms for advanced analytics including facial recognition and perimeter protection. Facial recognition functions include face picture comparison, human face capture, and face picture search. The PT-NRAS3A32-I8/S supports up to 1-channel facial recognition for video streams, up to 4-channel face picture comparison alarms, and up to 16 face picture libraries containing up to 10,000 face images. Perimeter protection supports human and vehicle recognition on up to 4 channels with up to 12 rules in total, helping reduce false alarms and improve event accuracy. Built on an Embedded Linux Dual OS architecture, the PT-NRAS3A32-I8/S also supports up to 16-channel 1080p decoding capability, providing efficient live viewing and playback performance in demanding surveillance environments.
The PT-NRAS3A32-I8/S supports H.265+, H.265, H.264+, H.264, and MPEG4 compression technologies and provides up to 320 Mbps incoming bandwidth and 256 Mbps outgoing bandwidth for stable multi-camera operation. When RAID mode is enabled, PT-NRAS3A32-I8/S supports up to 200 Mbps incoming and outgoing bandwidth. The recorder supports ONVIF Profile S and Profile G compatibility, enabling interoperability with third-party network cameras. PT-NRAS3A32-I8/S also supports RAID 0, 1, 5, 6, and 10 configurations for enhanced storage reliability.
With 8 hot-swappable SATA interfaces supporting hard drives up to 10TB each at 7200 RPM, the PT-NRAS3A32-I8/S offers a maximum raw storage capacity of 80TB, along with an eSATA interface for additional storage expansion. Additional interfaces include dual Gigabit Ethernet ports, 16 alarm inputs, 8 alarm outputs, RS-232, RS-485, and keyboard interfaces, dual USB 2.0 ports, one USB 3.0 port, dual audio outputs, and one two-way audio input. Featuring a dual redundant hot-swappable power supply, 16-channel synchronous playback, support for up to 128 remote connections, and BIS, CE, and FCC certifications, it is designed for surveillance deployments requiring reliability, scalability, and intelligent monitoring capabilities.
• 32-channel IP camera support with resolutions up to 12MP
• Facial recognition and perimeter protection with human and vehicle classification
• HDMI 1 output up to 4K (3840 × 2160) at 60Hz with independent display modes
• RAID 0, 1, 5, 6 and 10 support with dual redundant hot-swappable power supply
• 8 hot-swappable SATA bays supporting up to 10TB per HDD (80TB maximum raw capacity)
• Embedded Linux Dual OS design with ONVIF Profile S and Profile G compatibility
• Enterprise and commercial surveillance deployments with up to 32 IP cameras
• Installations requiring facial recognition and perimeter protection analytics
• Projects requiring RAID-protected storage and redundant power supply protection
• Multi-screen monitoring environments requiring 4K display output
• Long-term surveillance recording with 8 SATA bays supporting up to 10TB per HDD
• Small surveillance systems with only a few cameras
• Deployments that do not require AI-based analytics features
• Applications requiring built-in PoE ports for camera connectivity
• Installations requiring more than 32 IP camera channels
• Projects requiring native support for camera resolutions above 12MP on all channels
| Category | Parameter | Specification |
|---|---|---|
| General | Model | PT-NRAS3A32-I8/S |
| Product Type | Intelligent Series Network Video Recorder (NVR) | |
| Operating System | Embedded Linux Dual OS | |
| Certification | BIS, CE, FCC | |
| Facial Recognition | Facial Detection & Analytics | Face Picture Comparison, Human Face Capture, Face Picture Search |
| Facial Recognition for Video Stream | Up to 1 Channel | |
| Facial Recognition for Face Picture | Up to 4 Channels | |
| Face Picture Library | Up to 16 Face Picture Libraries | |
| Face Picture Capacity | Up to 10,000 Face Pictures | |
| Maximum Face Picture Size | ≤ 15 KB per Picture | |
| Total Face Library Capacity | ≤ 150 MB | |
| Face Picture Comparison Alarm | 4 Channels | |
| Human Face Capture Performance | 1 Channel (HD Network Camera, Up to 8 MP, H.264/H.265) | |
| Perimeter Protection | Human & Vehicle Analysis | Up to 4 Channels, 2 MP (H.264/H.265) |
| Human & Vehicle Recognition | Supported | |
| Maximum Rules | Up to 12 Rules Total | |
| Video & Audio | IP Video Input | 32 Channels |
| Maximum Camera Resolution | Up to 12 MP | |
| Ultra HD Resolution Mode | 32 MP and 24 MP available only on Channel 1 when enabled | |
| Incoming Bandwidth | 320 Mbps | |
| Outgoing Bandwidth | 256 Mbps | |
| Incoming Bandwidth (RAID Mode) | 200 Mbps | |
| Outgoing Bandwidth (RAID Mode) | 200 Mbps | |
| HDMI 1 Output | 4K (3840 Ă— 2160) @60Hz, 4K (3840 Ă— 2160) @30Hz, 2K (2560 Ă— 1440) @60Hz, 1920 Ă— 1080 @60Hz, 1600 Ă— 1200 @60Hz, 1280 Ă— 1024 @60Hz, 1280 Ă— 720 @60Hz, 1024 Ă— 768 @60Hz | |
| HDMI 2 Output | 1920 Ă— 1080 @60Hz, 1280 Ă— 1024 @60Hz, 1280 Ă— 720 @60Hz, 1024 Ă— 768 @60Hz | |
| VGA Output | 1 Channel, 1920 Ă— 1080 @60Hz, 1280 Ă— 1024 @60Hz, 1280 Ă— 720 @60Hz, 1024 Ă— 768 @60Hz | |
| Video Output Mode | HDMI1/VGA Simultaneous Output, HDMI2/VGA Independent Output | |
| Audio Output | 2 Channels, RCA (Linear, 1 KΩ) | |
| Two-Way Audio Input | 1 Channel, RCA (2.0 Vp-p, 1 KΩ) | |
| Decoding | Video Decoding Format | H.265+, H.265, H.264+, H.264, MPEG4 |
| Recording Resolution | 32 MP, 24 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF | |
| 32MP/24MP Recording Limitation | Available only on Channel 1 when Ultra HD Resolution Mode is enabled | |
| Synchronous Playback | 16 Channels | |
| Decoding Capability | 16 Channels @ 1080p (30 fps) | |
| Dual Stream Recording | Supported | |
| Stream Type | Video, Video & Audio | |
| Audio Compression | G.711ulaw, G.711alaw, G.722, G.726, MP2L2, AAC | |
| Network | Remote Connections | 128 |
| Network Protocols | TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTP, HTTPS | |
| Network Interface | 2 Ă— RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interfaces | |
| ONVIF Support | Profile S, Profile G | |
| RAID | RAID Type | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10 |
| Auxiliary Interface | Serial Port | RS-485 (Full-Duplex), RS-232, Keyboard Interface |
| SATA Interface | 8 Hot-Swappable SATA Interfaces | |
| Maximum HDD Capacity | Up to 10 TB per HDD (7200 RPM) | |
| Maximum Raw Storage Capacity | Up to 80 TB | |
| eSATA Interface | 1 eSATA Interface | |
| Alarm Input | 16 Channels | |
| Alarm Output | 8 Channels | |
| Front USB Ports | 2 Ă— USB 2.0 | |
| Rear USB Ports | 1 Ă— USB 3.0 | |
| Power | Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Supply Type | Dual, Redundant & Hot-Swap | |
| Power Consumption | ≤ 30 W (Without HDD) | |
| Environmental | Working Temperature | -10°C to 55°C (14°F to 131°F) |
| Working Humidity | 10% to 90% | |
| Physical | Chassis Type | 19-inch Rack Mounted 2U Chassis |
| Dimensions (W Ă— D Ă— H) | 442 Ă— 459 Ă— 92 mm | |
| Dimensions (L Ă— W Ă— H) | 44.2 Ă— 45.9 Ă— 9.2 cm | |
| Weight | ≤ 8.7 kg (Without HDD) | |
| Intelligent Features Summary | Facial Recognition | Up to 1-ch Video Stream Recognition |
| Face Picture Comparison | Up to 4-ch Comparison Alarm | |
| Face Libraries | Up to 16 Libraries / 10,000 Face Pictures | |
| Perimeter Protection | Up to 4-ch Human & Vehicle Analysis | |
| Maximum IP Cameras | 32 Channels | |
| Storage Capacity | 8 SATA Bays Supporting Up to 10 TB Each (80 TB Total) |
