The Synology E10G22-T1-Mini is a compact 10GbE RJ-45 network upgrade module designed for compatible Synology NAS systems equipped with a dedicated Network Upgrade Slot. It provides a cost-effective and space-saving way to enhance bandwidth for demanding workloads such as video editing, backup operations, virtualization, and multi-user collaboration.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The Synology E10G22-T1-Mini enables high-speed 10GbE connectivity without occupying a standard PCIe expansion slot. Designed specifically for compact Synology NAS systems, it supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps auto-negotiation, making it easy to integrate into existing RJ-45 network infrastructures while delivering significantly improved throughput for bandwidth-intensive applications.
Adds 10GbE RJ-45 networking capability to compatible Synology NAS systems for faster file transfers and reduced network bottlenecks.
Uses Synology’s dedicated Network Upgrade Slot instead of a full PCIe slot, making it ideal for compact NAS systems.
Supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps Ethernet speeds with automatic negotiation.
Works with nearly any standard RJ-45 Ethernet network environment and existing copper cabling infrastructure.
Supports jumbo frames, checksum offloading, Large Send Offload (LSO), Receive Side Scaling (RSS), TCP Segmentation Offload (TSO), and other advanced network acceleration technologies.
| Category | Specification |
|---|---|
| Product Model | Synology E10G22-T1-Mini |
| Expansion Interface | Synology Network Upgrade Slot |
| LAN Ports | 1 Ă— 10GbE RJ-45 |
| Connector Type | RJ-45 Copper |
| Supported Speeds | 10/5/2.5/1Gbps / 100Mbps |
| Network Mode | Full Duplex |
| Jumbo Frame Support | 9 KB |
| Supported Standards | IEEE 802.3an, 802.3bz, 802.3ab, 802.3u, 802.3x |
| Advanced Features | LSO, RSS, GRO, GSO, TSO |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 8% to 80% RH |
| Storage Humidity | 5% to 95% RH |
| Module Size | 26.37 Ă— 45.38 Ă— 75.7 mm |
| Warranty | 3 Years |
The E10G22-T1-Mini is compatible only with Synology NAS systems equipped with a dedicated Synology Network Upgrade Slot. DSM 7.1.1-42962 Update 4 or later is required for support.
It is a compact 10GbE RJ-45 network upgrade module for compatible Synology NAS systems.
No, it uses Synology’s dedicated Network Upgrade Slot instead of a standard PCIe expansion slot.
It supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps Ethernet speeds.
Yes, it uses a standard RJ-45 copper connector and integrates with existing Ethernet infrastructure.
DSM 7.1.1-42962 Update 4 or later is required for support.
| # | Lab name | Location | Certificate no. | Valid till |
|---|---|---|---|---|
| 1 | Precise Testing Solution Pvt. Ltd. | E-81, Second Floor, Sector 63, Noida, U.P. | STQC-SAB-SETL-3 | 10 Dec 2027 |
| 2 | AQM Technologies Pvt. Ltd. | 4th Floor, A Wing, 401 Raheja Plaza, LBS Road, Ghatkopar (W), Mumbai 400086 | STQC-SAB-SETL-10 | 19 Oct 2026 |
| 3 | AKS Information Technology Services Pvt. Ltd. | B-21, Sector 59, Noida 201309, U.P. | STQC-SAB-SETL-9 | 05 Sep 2026 |
| 4 | Information Technology Quality Certification and Research (ITQCR) | C-202, Infotech Park, Tower No-8, CBD Belapur, Navi Mumbai 400614 | STQC-SAB-SETL-1 | 11 Sep 2027 |
| 5 | Quality Kiosk Technologies Pvt. Ltd. | 419 A, Rupa Solitaire, Sector 1, Millennium Business Park, Mahape, Navi Mumbai 400710 | STQC-SAB-SETL-4 | 19 Dec 2027 |
| 6 | Maverick Quality Advisory Services Pvt. Ltd. | 123 Radhey Shyam Park, PO Sahibabad, Ghaziabad, U.P. 201005 | STQC-SAB-SETL-11 | 28 Jul 2027 |
| 7 | Redinent Innovations Pvt. Ltd. | 18, Novel MSR Park, Varthur Main Road, Munnekolalu, Marathahalli, Bengaluru 560037 | STQC-SAB-SETL-12 | 05 Aug 2027 |
| 8 | Levithan Technologies Pvt. Ltd. | Shop No. 374A, Bhoor Colony, Old Faridabad, Haryana 121002 | STQC-SAB-SETL-13 | 05 Aug 2027 |
| 9 | CyberSRC Consultancy Pvt. Ltd. | Unit 605, 6th Floor, World Trade Tower, Sector 16, Noida 201301 | STQC-SAB-SETL-14 | 18 Aug 2028 |
| 10 | ITOrizin Technology Solution Pvt. Ltd. | 8/14, Sahid Nagar, Ground Floor, Haltu, Garfa, Kolkata 700078 | STQC-SAB-SETL-15 | 23 Nov 2028 |
| Category | Specification |
|---|---|
| Product Name | Synology E10G22-T1-Mini |
| Product Type | 10GbE Network Upgrade Module |
| Function | Adds 10GbE RJ-45 connectivity to compatible Synology NAS systems |
| Connectivity Type | RJ-45 Copper |
| LAN Ports | 1 x 10GbE RJ-45 |
| Expansion Slot | Synology Network Upgrade Slot |
| Network Operation Mode | Full Duplex |
| Supported Speeds | 10Gbps |
| 5Gbps | |
| 2.5Gbps | |
| 1Gbps | |
| 100Mbps | |
| Auto Negotiation | Yes |
| Jumbo Frame Support | 9 KB Jumbo Frames |
| Category | Specification |
|---|---|
| IEEE 802.3an | 10GBASE-T 10 Gbps Ethernet |
| IEEE 802.3bz | NBASE-T 2.5/5 Gbps Ethernet |
| IEEE 802.3ab | 1000BASE-T 1 Gbps Ethernet |
| IEEE 802.3u | 100BASE-TX Fast Ethernet |
| IEEE 802.3x | Flow Control |
| Category | Specification |
|---|---|
| Data Transfer Rates | 10Gbps |
| 5Gbps | |
| 2.5Gbps | |
| 1Gbps | |
| 100Mbps |
| Category | Specification |
|---|---|
| Offloading Features | TCP/UDP/IP checksum offloading |
| Large Send Offload (LSO) | |
| Receive Side Scaling (RSS) | |
| Generic Receive Offload (GRO) | |
| Generic Segmentation Offload (GSO) | |
| TCP Segmentation Offload (TSO) | |
| Additional Features | Auto-negotiation between 10/5/2.5/1Gbps and 100Mbps |
| Category | Specification |
|---|---|
| Dimensions (H Ă— W Ă— D) | 26.37 Ă— 45.38 Ă— 75.7 mm |
| Connector Type | RJ-45 Copper |
| Form Factor | Mini Network Upgrade Module |
| Category | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Operating Humidity | 8% to 80% RH |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Storage Humidity | 5% to 95% RH |
| Category | Specification |
|---|---|
| DSM Requirement | DSM 7.1.1-42962 Update 4 or later |
| Compatible Systems | Synology models with dedicated Network Upgrade Slot |
| Integration | Designed specifically for Synology NAS systems |
| Category | Specification |
|---|---|
| Warranty | 3 Years |
In stock
Out of stock
| Weight | 0.88 kg |
|---|---|
| Dimensions | 16.5 × 10.0 × 22.5 cm |
| Model | Synology DS223j |
| Brand | Synology |
| Processor | Realtek RTD1619B Quad-Core 1.7GHz |
| Warranty | 2 Years |
| RAM | 1 GB DDR4 |
| Total Bay | 2 Bay |
In stock

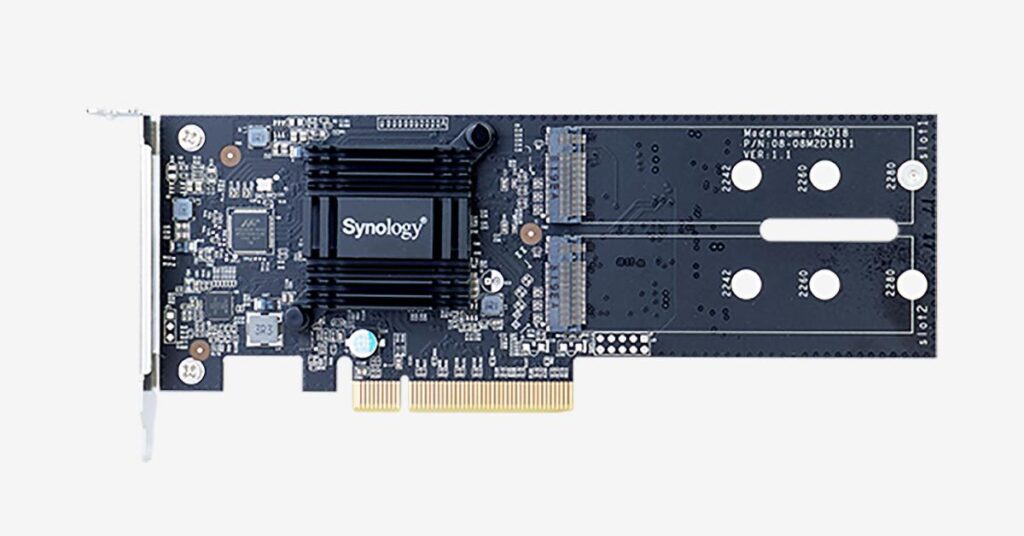

| Model | Synology M2D18 |
|---|---|
