The Synology E10M20-T1 is a combo PCIe expansion adapter that integrates both dual M.2 NVMe SSD slots and a single-port 10GbE RJ-45 network interface into one card. Designed for compatible Synology NAS systems, it simultaneously boosts storage I/O performance and network bandwidth, making it ideal for virtualization, backup, media production, and enterprise collaboration workloads.
Pick up from the FGTECH Store To pick up today
0-1 Days
Free
Courier delivery Our courier will deliver to the specified address
4-7 Days
Free
Porter / WeFast Currently available only in Mumbai
0-1 Days
To be paid directly to service vendor
Fast Delivery ( By Air ) We will ship from your product By Air to nearest center to speed up the delivery
2-4 Days
Start from Rs250 Extra
The Synology E10M20-T1 is designed for NAS systems with limited PCIe expansion slots, allowing users to add both high-speed 10GbE networking and NVMe SSD cache acceleration using a single PCIe slot. With support for Synology SNV3000 NVMe SSDs and multi-gigabit Ethernet auto-negotiation, it delivers enterprise-grade storage responsiveness and networking performance in a compact integrated solution.
Features a single 10GBASE-T RJ-45 Ethernet port supporting 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps auto-negotiation.

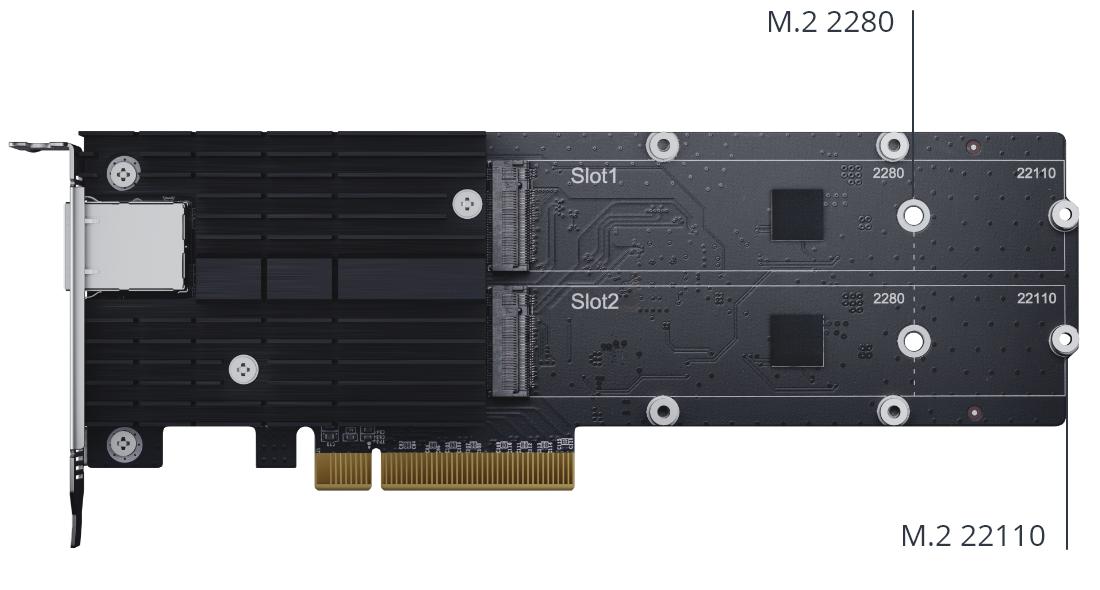

Includes two M-key M.2 NVMe SSD slots supporting 22110 and 2280 form factors for SSD cache acceleration.
Uses a PCIe 3.0 x8 host interface for high-bandwidth connectivity and optimized system performance.
Combines SSD caching and 10GbE networking into a single expansion card, ideal for NAS systems with limited PCIe slots.
Designed specifically for Synology SNV3000 enterprise NVMe SSDs to provide reliable caching performance and endurance.
| Category | Specification |
|---|---|
| Product Model | Synology E10M20-T1 |
| Host Interface | PCIe 3.0 x8 |
| Network Ports | 1 Ă— 10GbE RJ-45 |
| Supported Ethernet Speeds | 10/5/2.5/1Gbps / 100Mbps |
| Network Standards | IEEE 802.3an, 802.3bz, 802.3ab, 802.3u, 802.3x |
| Storage Interface | NVMe |
| SSD Form Factors | M.2 22110 / 2280 |
| SSD Connector Type | M-Key |
| SSD Slots | 2 |
| Jumbo Frame Support | 9 KB |
| Bracket Support | Low-profile & Full-height |
| Dimensions | 71.75 Ă— 200.55 Ă— 17.7 mm |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Relative Humidity | 5% to 95% RH |
| Warranty | 5 Years |
Improves both network throughput and storage responsiveness at the same time using a single PCIe slot.
Dual NVMe SSD slots accelerate caching performance and reduce NAS latency for demanding workloads.
Ideal for compact NAS systems where PCIe slot availability is limited.
It is a combo PCIe adapter card that adds both dual NVMe SSD slots and single-port 10GbE networking to compatible Synology NAS systems.
The adapter supports two M-key M.2 NVMe SSDs.
No, the E10M20-T1 supports NVMe SSDs only.
It supports 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, and 100Mbps Ethernet speeds.
The adapter is designed for Synology SNV3000 series NVMe SSDs.
| # | Lab name | Location | Certificate no. | Valid till |
|---|---|---|---|---|
| 1 | Precise Testing Solution Pvt. Ltd. | E-81, Second Floor, Sector 63, Noida, U.P. | STQC-SAB-SETL-3 | 10 Dec 2027 |
| 2 | AQM Technologies Pvt. Ltd. | 4th Floor, A Wing, 401 Raheja Plaza, LBS Road, Ghatkopar (W), Mumbai 400086 | STQC-SAB-SETL-10 | 19 Oct 2026 |
| 3 | AKS Information Technology Services Pvt. Ltd. | B-21, Sector 59, Noida 201309, U.P. | STQC-SAB-SETL-9 | 05 Sep 2026 |
| 4 | Information Technology Quality Certification and Research (ITQCR) | C-202, Infotech Park, Tower No-8, CBD Belapur, Navi Mumbai 400614 | STQC-SAB-SETL-1 | 11 Sep 2027 |
| 5 | Quality Kiosk Technologies Pvt. Ltd. | 419 A, Rupa Solitaire, Sector 1, Millennium Business Park, Mahape, Navi Mumbai 400710 | STQC-SAB-SETL-4 | 19 Dec 2027 |
| 6 | Maverick Quality Advisory Services Pvt. Ltd. | 123 Radhey Shyam Park, PO Sahibabad, Ghaziabad, U.P. 201005 | STQC-SAB-SETL-11 | 28 Jul 2027 |
| 7 | Redinent Innovations Pvt. Ltd. | 18, Novel MSR Park, Varthur Main Road, Munnekolalu, Marathahalli, Bengaluru 560037 | STQC-SAB-SETL-12 | 05 Aug 2027 |
| 8 | Levithan Technologies Pvt. Ltd. | Shop No. 374A, Bhoor Colony, Old Faridabad, Haryana 121002 | STQC-SAB-SETL-13 | 05 Aug 2027 |
| 9 | CyberSRC Consultancy Pvt. Ltd. | Unit 605, 6th Floor, World Trade Tower, Sector 16, Noida 201301 | STQC-SAB-SETL-14 | 18 Aug 2028 |
| 10 | ITOrizin Technology Solution Pvt. Ltd. | 8/14, Sahid Nagar, Ground Floor, Haltu, Garfa, Kolkata 700078 | STQC-SAB-SETL-15 | 23 Nov 2028 |
| Category | Specification |
|---|---|
| Product Name | Synology E10M20-T1 |
| Product Type | 10GbE and M.2 NVMe Combo Adapter Card |
| Function | Combines 10GbE networking and NVMe SSD cache expansion in a single PCIe card |
| Host Bus Interface | PCIe 3.0 x8 |
| Bracket Height | Low Profile |
| Full Height | |
| Dimensions (H Ă— W Ă— D) | 71.75 mm Ă— 200.05 mm Ă— 17.70 mm |
| Category | Specification |
|---|---|
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) |
| Relative Humidity | 5% to 95% RH |
| Category | Specification |
|---|---|
| Warranty | 5 Years |
| Notes | Warranty period starts from purchase date on receipt |
| Category | Specification |
|---|---|
| Storage Interface | PCIe NVMe |
| Supported Form Factor | 22110 |
| 2280 | |
| Connector Type and Quantity | M-key, 2 Slots |
| Category | Specification |
|---|---|
| IEEE 802.3x | Flow Control |
| IEEE 802.3u | Fast Ethernet |
| IEEE 802.3ab | Gigabit Ethernet |
| IEEE 802.3bz | 2.5Gbps / 5Gbps Ethernet |
| IEEE 802.3an | 10Gbps Ethernet |
| Data Transfer Rates | 10 Gbps |
| Network Operation Mode | Full Duplex |
| Category | Specification |
|---|---|
| Jumbo Frame Support | 9 KB Jumbo Frame |
| Offloading Features | TCP/UDP/IP Checksum Offloading |
| TCP Segmentation Offload (TSO) | |
| Large Send Offload (LSO) | |
| Receive Side Scaling (RSS) | |
| Generic Receive Offload (GRO) | |
| Generic Segmentation Offload (GSO) | |
| Auto Negotiation | 100Mb/s |
| 1Gb/s | |
| 2.5Gb/s | |
| 5Gb/s | |
| 10Gb/s |
| Series | Models |
|---|---|
| SA Series | SA6400, SA3610, SA3600, SA3410, SA3400 |
| 25 Series | RS2825RP+ |
| 23 Series | RS2423RP+II, RS2423RP+, RS2423+ |
| 22 Series | RS822RP+, RS822+, DS3622xs+, DS2422+ |
| 21 Series | RS4021xs+, RS3621xs+, RS3621RPxs, RS2821RP+, RS2421RP+, RS2421+, RS1221RP+, RS1221+ |
| 20 Series | RS820RP+, RS820+ |
| 19 Series | DS2419+II, DS2419+, DS1819+ |
| 18 Series | RS3618xs, RS2818RP+, DS3018xs, DS1618+ |
| 17 Series | RS18017xs+, RS4017xs+, RS3617xs+, RS3617RPxs, DS3617xsII, DS3617xs |
| Category | Specification |
|---|---|
| General DSM Requirement | DSM 6.2.3-25426 or later |
| Special DSM Requirement | DSM 7.0.1 or later for RS18017xs+, RS4017xs+, RS3618xs, RS3617xs+, RS3617RPxs, DS3617xs, DS3617xsII |
