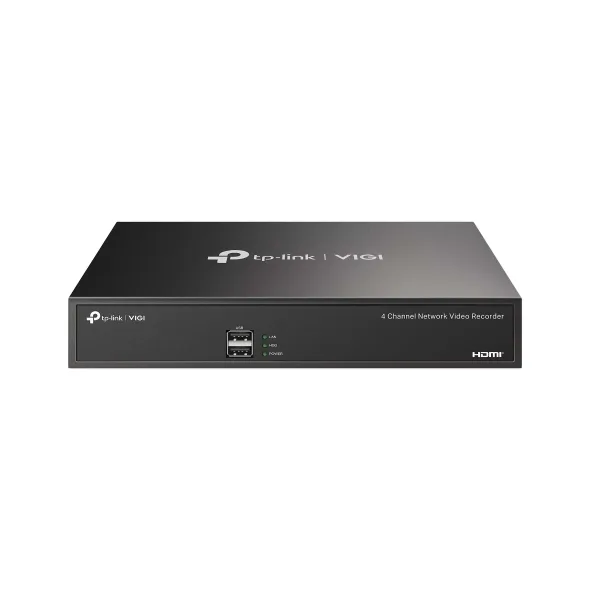

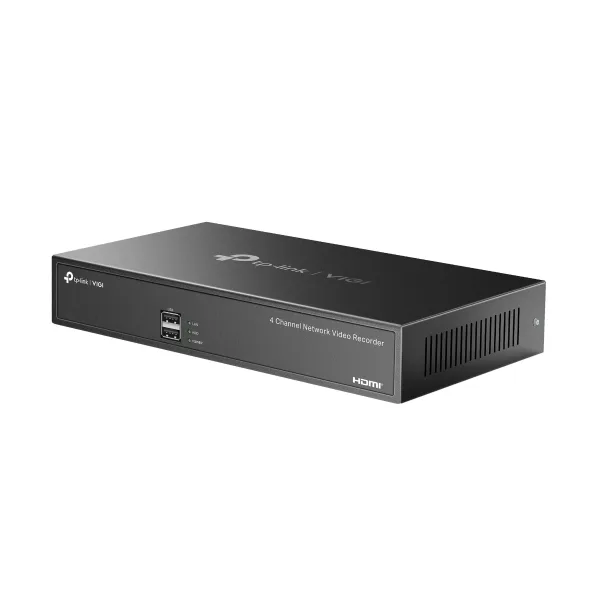

TP-Link VIGI NVR1004H 4 Channel Network Video Recorder with 4K Clarity,ONVIF Compatibility
The TP-Link VIGI NVR1004H is an affordable 4-channel NVR comes with 4k clarity ,HDMI and VGA Simultaneous Output and ONVIF compatibility, designed for high-definition surveillance,H.265+ Compression Technology, real-time monitoring, and secure video storage. It’s the perfect solution for robust, cost-effective security in small to medium-sized businesses
Original price was: ₹5,999.00.₹2,629.00Current price is: ₹2,629.00.cm Inc. tax (₹2,227.97Exc. Tax)
Description
The TP-Link VIGI NVR1004H is an affordable 4-channel network video recorder offering impressive 4K clarity and ONVIF compatibility, designed for high-definition, reliable surveillance. It supports a 4-channel live view, with decoding capabilities of 2 channels at 8MP or 4 channels at 4MP, and allows for 4-channel synchronous playback for seamless monitoring. With an 80 Mbps incoming bandwidth and 60 Mbps outgoing bandwidth, it ensures smooth, high-quality video streaming.
The VIGI NVR1004H also features a SATA interface supporting up to 10 TB of storage, utilizing H.265+ compression technology to optimize storage capacity.
It supports HDMI and VGA simultaneous output, providing flexible display options, and offers remote monitoring for convenient, on-the-go access—an ideal choice for secure, scalable surveillance in small to medium businesses.
| Weight | 1.07 kg |
|---|---|
| Dimensions | 30 × 28 × 7 cm |
| Brand | |
| CHANNEL |
4 |
| SATA |
1 |
| Badges |
24Hr Dispatch |
| VIDEO AND AUDIO | |
|---|---|
| IP Video Input | 4-Channel |
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 60 Mbps |
| HDMI Output Resolution | 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| VGA Output Resolution | 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz |
| Video Output Mode | HDMI/VGA Simultaneous Output |
| Multi-View Display | 1/4 |
| DECODING | |
|---|---|
| Audio Compression | G.711A/G.711U/G.726 |
| Video Compression | H.265+/H.265/ H.264+/H.264 |
| Record Resolution | 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
| Synchronous Playback | 4-Channel |
| Capability | 2-ch @ 8MP, 4-ch @ 4MP |
| RECORD MANAGEMENT | |
|---|---|
| Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
| Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
| Backup Mode | • Regular Backup • Video Clip Backup |
| Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
| NETWORK | |
|---|---|
| Protocol | UPnP (Plug and Play), NTP (Network Timing) |
| Mobile Phone Access | Android, iOS |
| Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
| Interoperability | ONVIF, CGI |

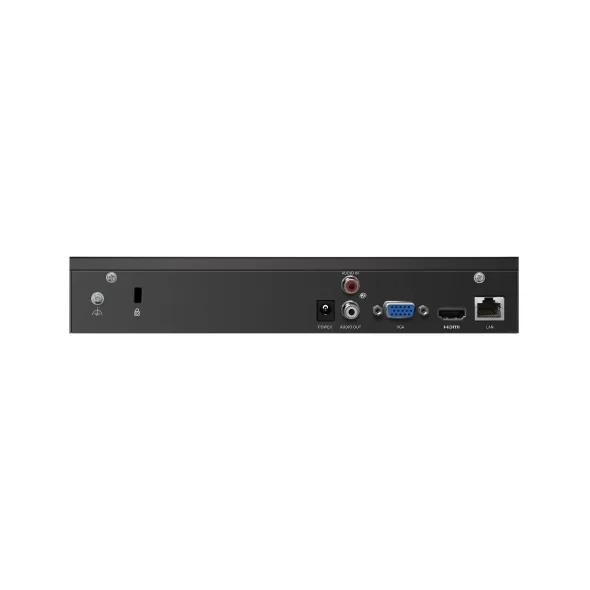

| EXTERNAL INTERFACE | |
|---|---|
| Network Interface | 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface |
| USB Interface | 2× USB 2.0 |
| Audio Interface | 1, Audio In; 1, Audio Out |
| Alarm In/Out | N/A |
| Serial Interface | N/A |
| Power | 1× DC Jack |
| Reset Button | 1 |
| Speaker | N/A |
| eSATA | N/A |
| HDMI | 1 |
| VGA | 1 |
| HARD DISK | |
|---|---|
| SATA | 1 SATA Interface |
| Capacity | Up to 10 TB Capacity for Each HDD* |
| ALARM | |
|---|---|
| General Alarm | • Motion Detection • Video Tampering • Line-Crossing Detection • Intrusion Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned/Removal Detection • Vehicle Detection • Human Detection • Smart Frame |
| Anomaly Alarm | • Video Loss • Offline and IP Conflict • Disk Exception • Login Exception |
| Alarm Linkage | • Recording • White Light Alarm • Buzzer • Log • Audible Alarm |
| GENERAL | |
|---|---|
| Storage Temperature | -40–70 °C |
| Storage Humidity | 10%~90% RH Non-Condensing |
| Package Contents | • VIGI Network Video Recorder • Power Adapter • HDD Screws • Mouse • Rubber Feet • Quick Installation Guide |
| Working Temperature | • NVR: -10–55 °C • Power Adapter: 0–40 °C |
| Working Humidity | 10%~90% RH Non-Condensing |
| Dimensions( W X D X H ) | 246.2 × 148.2 × 45 mm |
| External Power Supply | DC 12V/1.5A |
| Net Weight | 0.59 kg |
| Gross Weight | 0.95 kg |
| Power Consumption | 4.25 W (without disk) |
| Certifications | CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI |
| Origin Country | China |
