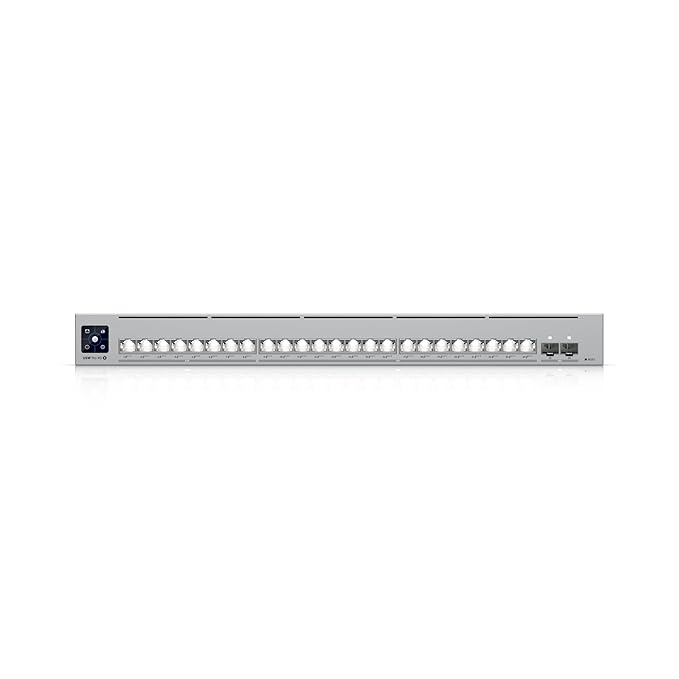

Ubiquiti USW-Pro-XG-24-PoE – 24-Port Layer 3 10G/2.5G PoE+++ Switch with 25G SFP28 Uplinks, 720W Power Budget, Etherlighting & Advanced Security

Ubiquiti USW-Pro-XG-24-PoE is a professional-grade Layer 3 managed switch featuring 24 PoE+++ ports (16x 10G, 8x 2.5G) and 2x 25G SFP28 uplinks. It delivers blazing-fast 460 Gbps switching capacity, 720W PoE power budget, Etherlighting™ visual feedback, and advanced L2/L3 networking features for high-performance enterprise environments.

We are trying hard to provide best price, still not satisfied. Let us know


    Please prove you are human by selecting the car.

    • Pick up from the FGTECH Store

    To pick up today

    0-1 Days

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    4-7 Days

    Free

    • Porter / WeFast

    Currently available only in Mumbai

    0-1 Days

    To be paid directly to service vendor

    • Fast Delivery ( By Air )

    We will ship from your product By Air to nearest center to speed up the delivery

    2-4 Days

    Start from Rs250 Extra

    SKU: FGIN7N9X2E63 Categories: , Brand:
    Description

    The Ubiquiti UniFi USW-Pro-XG-24-PoE (720W) is a next-generation Layer 3 managed switch designed for data-intensive and power-demanding enterprise networks. Ubiquiti USW-Pro-XG-24-PoE is featuring 24 high-speed PoE+++ ports (16x 10G + 8x 2.5G) and 2x 25G SFP28 uplinks, this switch delivers a non-blocking throughput of 230 Gbps and 460 Gbps switching capacity, ensuring maximum performance for demanding applications such as Pro AV, VoIP, and high-bandwidth data transfer.

    Ubiquiti USW-Pro-XG-24-PoE comes with a 720W total PoE budget, the USW-Pro-XG-24-PoE powers a wide range of high-wattage devices including access points, cameras, and VoIP phones. Its Etherlighting™ LED indicators provide real-time network status visualization, while the 1.3” touchscreen LCM display offers simplified local management and diagnostics.

    Ubiquiti USW-Pro-XG-24-PoE switch supports advanced Layer 3 capabilities like static routing, DHCP server, and inter-VLAN routing, alongside Layer 2 features such as LACP, QoS, STP/RSTP, IGMP Snooping, 802.1X control, and advanced ACLs for security. Designed for reliability, it includes redundant DC power input, storm control, loop protection, and LLDP-MED for VoIP optimization.

    Perfect for enterprise networks, data centers, and Pro AV deployments, the USW-Pro-XG-24-PoE combines power, intelligence, and flexibility in a single rackmount 1U design.

    Key Features:

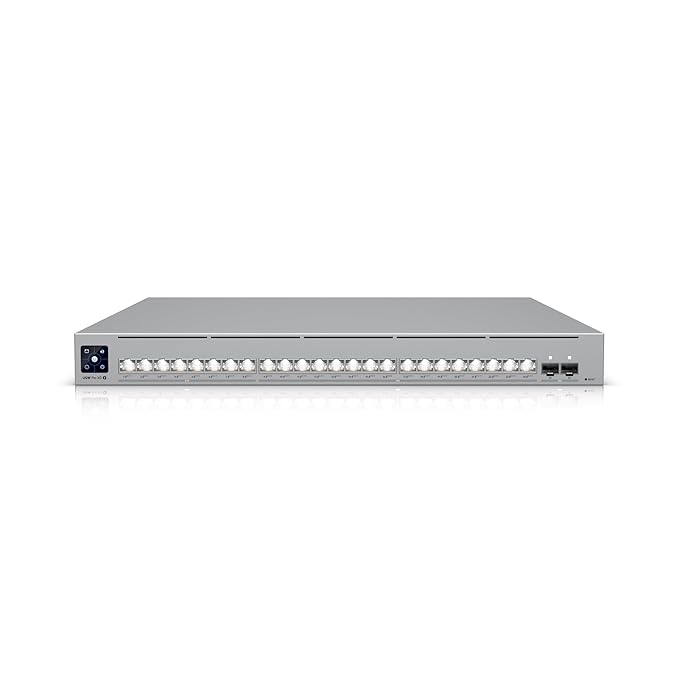

    • High-Speed Connectivity: 24x PoE+++ ports — 16x 10G and 8x 2.5G RJ45 — plus 2x 25G SFP28 uplinks

    • Powerful PoE Output: 720W total PoE power with up to 90W per port (PoE+++)

    • Advanced Layer 3 Switching: Supports static routing, inter-VLAN routing & DHCP services

    • Exceptional Performance: 460 Gbps switching capacity and 342 Mpps forwarding rate

    • Etherlighting™ Technology: Real-time LED feedback for network and port activity

    • Enterprise-Grade Reliability: Redundant DC power input, storm control, and loop protection

    • Comprehensive Security: MAC/IP ACLs, 802.1X, DHCP snooping, and port isolation

    • Pro AV Optimized: Includes dedicated profiles for Dante, Q-SYS, Crestron, Shure, and AES67

    • Smart Management: 1.3” touchscreen display and UniFi Network Controller (v9.1.120+)

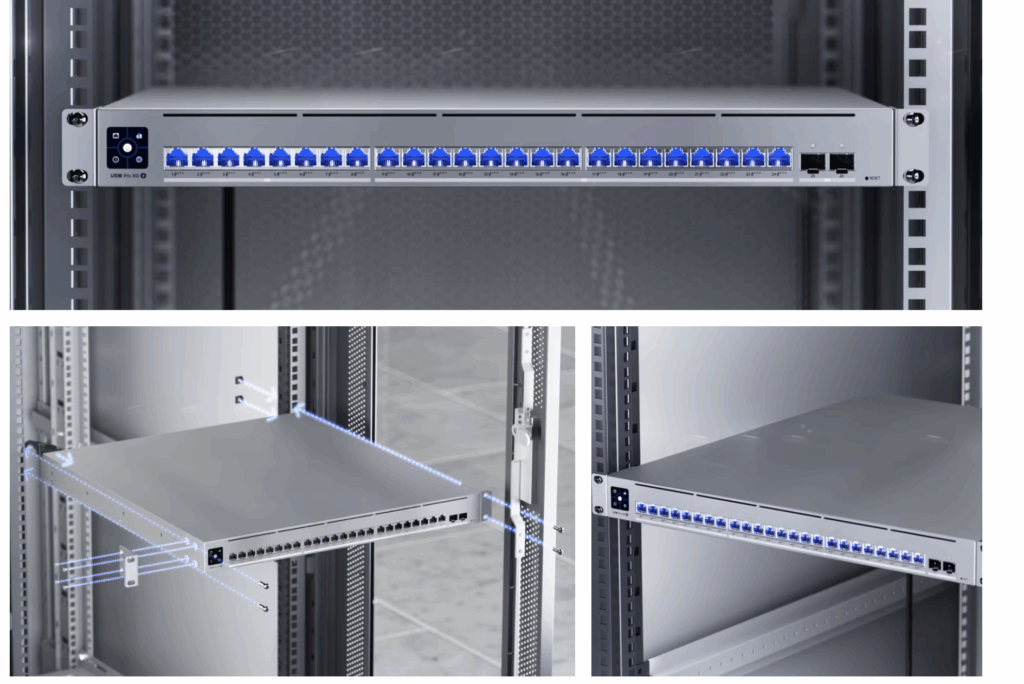

    • Durable Design: 1U rackmount steel chassis with robust thermal management

    About Ubiquiti

    Ubiquiti India: Authorized UniFi Networking & AI-Protect Surveillance - FGTECH STORE

    Why Ubiquiti? Enterprise Power. Zero Subscription Fees.

    Ubiquiti has redefined the Indian IT landscape by offering professional-grade networking without the burden of recurring licensing costs. At FGTECH Store, we provide the full UniFi ecosystem—integrating high-speed Wi-Fi, AI-powered security, and centralized cloud management into a single, intuitive dashboard.

    1. UniFi Protect: The AI-Driven Security Revolution

    Move beyond traditional CCTV. The Ubiquiti Protect Series offers local, secure storage with no monthly cloud fees.

    • AI Analytics: Human, vehicle, and license plate recognition built-in.

    • Edge Processing: Faster alerts and 4K crystal-clear footage.

    • NVR Scalability: From UNVR-Instant to the UNVR-Pro (7-bay RAID 1/5/10) for massive enterprise storage.

    2. UniFi Wi-Fi 6/7: High-Density Wireless Performance

    Designed for the modern Indian home and office where device density is high.

    • U6-Pro & U6-Plus: Optimized for high-throughput indoor environments.

    • U6-Mesh: Industrial design for flexible indoor/outdoor deployments.

    • UDM-Pro / UCG-Ultra: The ultimate "Brain" for your network, combining a router, firewall, and controller in one.

    3. The Integrated Ecosystem (One Dashboard to Rule Them All)

    • Single Pane of Glass: Manage networking, surveillance, and access control via the UniFi Controller.

    • License-Free: Unlike Cisco or Meraki, Ubiquiti offers professional features with Zero Annual Fees.

    The Power of the Ubiquiti Ecosystem

    Ubiquiti stands out with its integrated ecosystem, ensuring a flawless user experience across networking, security, and IoT. Benefits include:
    🔹 Centralized Management – Control all devices via the UniFi Controller or UISP (for ISPs).
    🔹 Zero-Touch Deployment – Easy setup and remote configuration.
    🔹 Scalable Networking – Expand seamlessly with UniFi Switches, Gateways & Cloud Controllers.
    🔹 Cost-Effective, Enterprise-Grade – High-performance networking without expensive licensing fees.

    Why Buy Ubiquiti from FGTech Store?

    At FGTech Store, we ensure:
    🔹 100% Genuine Ubiquiti Products – Authorized seller with warranty.
    🔹 Competitive Pricing – Best value for business and home networking.
    🔹 Expert Support & Consultation – Get guidance from networking specialists.
    🔹 Fast Shipping Across India – Reliable delivery for quick deployments.

    Here is a list of popular ubiquiti products available in India

    Product NameCategoryDescriptionKey Features
    UCG-UltraGateway/RouterHigh-performance UniFi Cloud Gateway Ultra for networkingAdvanced security, high-speed connectivity, UniFi integration
    UDM-ProUniFi ControllerUniFi Dream Machine Pro – All-in-one security gateway & NVR8-port switch, UniFi OS, IDS/IPS, Dual WAN
    UVC-G5-Dome-UltraSurveillanceUltra-clear G5 Dome security camera with AI-enhanced video4K resolution, AI motion detection, night vision
    U6-ProWi-Fi Access PointHigh-performance Wi-Fi 6 access point for fast connectivityDual-band Wi-Fi 6, 5.3 Gbps speed, Indoor use
    U6-PlusWi-Fi Access PointCompact Wi-Fi 6 access point for homes & officesDual-band, up to 3 Gbps, Power over Ethernet (PoE)
    USW-PRO-48-POENetwork Switch48-port PoE UniFi switch for enterprise networking48 PoE+ ports, 600W total PoE budget, Layer 3 capabilities
    USW-FLEXPoE SwitchCompact, outdoor-rated PoE switch for flexible deployments5-port GbE, PoE passthrough, Weather-resistant design
    PBE-5AC-Gen2Wireless BridgePowerBeam AC Gen2 – Long-range 5 GHz PtP/PtMP bridge450+ Mbps throughput, 25 dBi antenna, airMAX AC
    LBE-5AC-Gen2Wireless BridgeLiteBeam AC Gen2 – Lightweight 5 GHz PtP/PtMP solution450+ Mbps throughput, 23 dBi antenna, airMAX AC
    ETH-SP-G2Surge ProtectorEthernet surge protector for outdoor network protectionGigabit support, ESD protection, Compatible with PoE

    Network Video Recorders (NVRs)

    • UNVR – 4-bay NVR with RAID 1/5, ideal for medium to large deployments.
    • UNVR-PRO – Enterprise-grade, 7-bay NVR with RAID 1/5/10, dual 10G SFP+, and a touchscreen.

    Cameras

    • UVC-G5-Dome-Ultra – 2K dome camera with AI detection and superior low-light performance.
    • UVC-G5-Dome – 4MP (2K) compact indoor/outdoor dome camera with IR night vision and AI motion detection.
    • UVC-G5-Bullet – 2K weather-resistant bullet camera with IR night vision and AI-powered smart detection.
    • UVC-G5-Flex – 1080p compact camera with a magnetic base for flexible indoor/outdoor mounting.
    • UVC-G5-Turret-Ultra – 2K turret-style camera with advanced AI and low-light enhancements for high-security needs.

    Upgrade to Ubiquiti’s Protect Series, Wi-Fi 6, and UniFi ecosystem with FGTech Store – India’s trusted Ubiquiti supplier!

    Q. Why should I buy from FGTECH Store instead of the official Ubiquiti India Store?

    While the Ubiquiti India store is an excellent source for hardware, FGTECH Store provides a more "hands-on" partner experience tailored for professional deployments and complex project requirements.

    • Real-Time Technical Consultation: The official store is a self-service platform. At FGTECH, we provide pre-sales architecture support. If you aren't sure which PoE budget you need or how many APs are required for your floor plan, our specialists are available on WhatsApp to verify your BOM (Bill of Materials).

    • Flexible Logistics (Mumbai Local Advantage): We offer local pickup in Mumbai and specialized express shipping options that go beyond standard courier templates. If you have a "Site-Down" emergency, we can often facilitate faster turnaround times.

    • Consolidated Project Orders: Most IT projects require more than just Ubiquiti. At FGTECH, you can bundle your UniFi gear with Seagate SkyHawk HDDs, Rack Cabinets, and Patch Cords in a single shipment and a single invoice.

    • Proactive Warranty Assistance: While the official store follows a standard automated RMA process, we act as your first line of support. If you face an issue, we help diagnose if it's a configuration error or a hardware fault before you go through the effort of an RMA.

    • Dedicated Account Management: For B2B clients and recurring buyers, we offer personalized service and order tracking that a high-volume automated store simply cannot match.



    Ubiquiti Logo
    Product Details

    ModelUSW-Pro-XG-24-PoE (720W)
    Dimensions442 x 480 x 44 mm (17.4 x 18.9 x 1.7")
    Form FactorRack mount (1U)

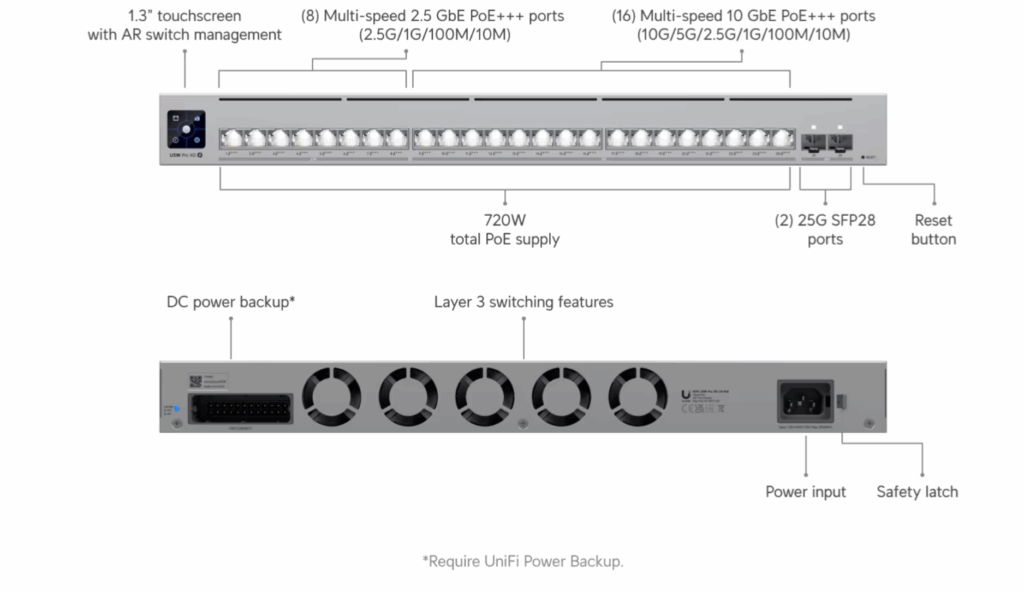

    Port Layout2.5 GbE RJ45: 8 (All PoE+++) 10 GbE RJ45: 16 (All PoE+++) 25G SFP28: 2
    Max. PoE OutputUp to PoE+++
    Total PoE Availability720W
    RedundancyDC Power Backup
    Layer 3 Support
    Etherlighting™
    Performance (Switching)Switching Capacity: 460 Gbps Total Non-Blocking Throughput: 230 Gbps Forwarding Rate: 342 Mpps
    Supported VLANs1,000
    MAC Address Table Size128,000
    L3 Table SizeARP Entries: 128,000 IPv4 Routes: 256,000
    Packet Buffer Size8 MB
    Access ListsIPv4: 256 MAC: 256
    Layer 3 FeaturesDHCP Server, DHCP Relay, Inter-VLAN Routing, Static Routing
    Layer 2 FeaturesLACP Port Aggregation, STP & RSTP, QoS (DSCP), Pro AV Profiles, Advanced IGMP, IGMP Snooping, 802.1X, MAC-Based ACLs, DHCP Snooping, Egress Rate Limit, Flow/Storm Control, Port Isolation/Mirroring, Jumbo Frames, LLDP-MED, Voice VLAN, Loop Protection, MAC/IP Based ACLs
    PoE PortsPoE+++ : 24
    Max. PoE Wattage per PortPoE: 15.4W PoE+: 30W PoE++: 60W PoE+++: 90W
    Max. Power Consumption150W (Excl. PoE) 870W (Incl. PoE)

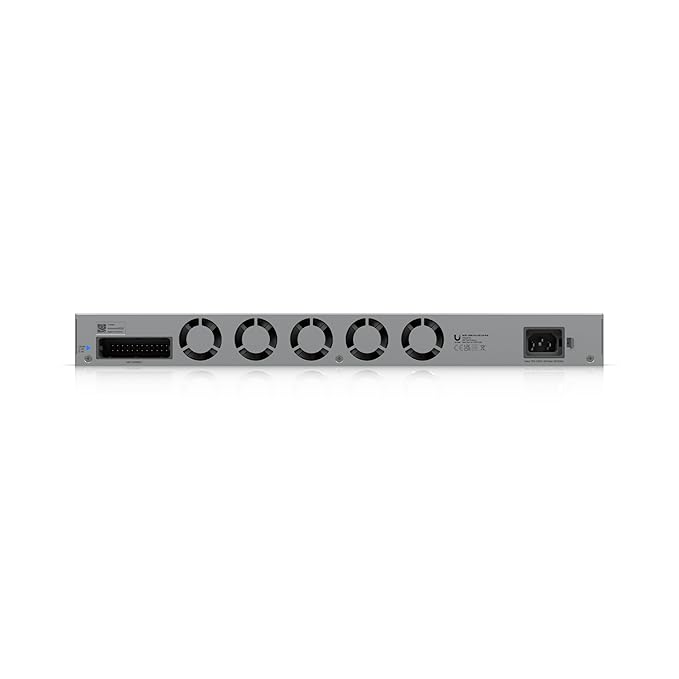

    Power Method(1) Universal input 100–240V AC, 50/60 Hz (1) USP RPS DC input
    Power Input MethodAC input
    Power SupplyAC/DC internal, 870W
    Supported Voltage Range100–240V AC
    ManagementEthernet, AR
    WeightWithout brackets: 7.9 kg (17.4 lb) With brackets: 8 kg (17.6 lb)
    Enclosure MaterialSGCC steel
    Mount MaterialSGCC steel

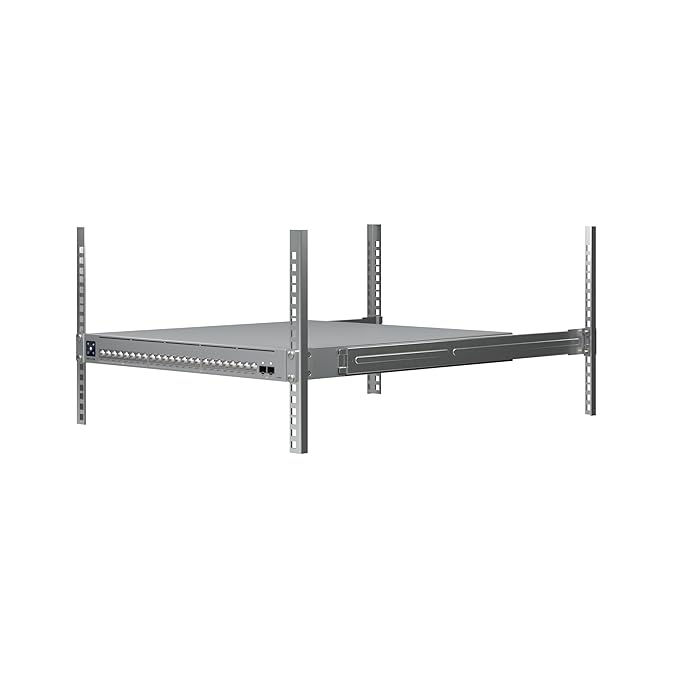

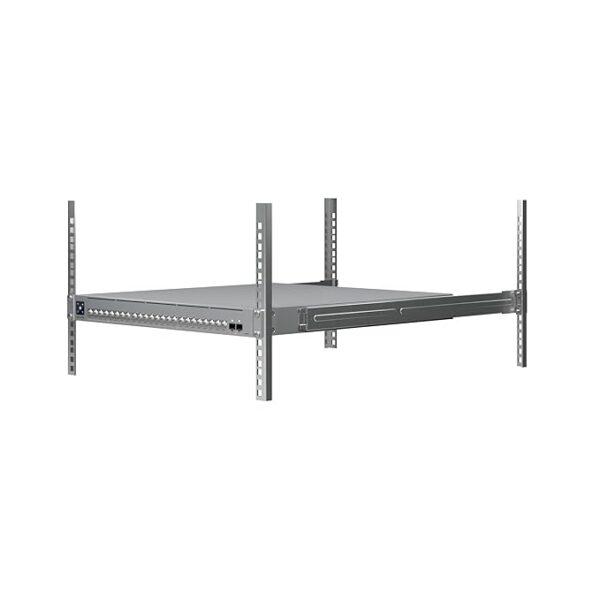

    Supported Rack Depth482.6 mm (19") four-post racks 600–1,066 mm (23.6–42”)
    LCM Display1.3" touchscreen
    ESD ProtectionAir: ±30kV, Contact: ±20kV
    Ambient Operating Temp.-5 to 40° C (23 to 104° F)
    Ambient Operating Humidity10–90% noncondensing
    Etherlighting™ IndicatorsEthernet: ✓ SFP28: ✓
    LEDsRPS: ✓
    NDAA Compliant
    CertificationsCE, FCC, IC, Anatel
    Software RequirementsUniFi Network Version 9.1.120+
