Grandstream GWN7605CLR Outdoor Wi-Fi 5 Access Point – 802.11ac Wave 2, Dual-Band 1.27Gbps, Gigabit Ethernet, PoE+, IP66 Weatherproof, 150m Range

The Grandstream GWN7605CLR Outdoor 802.11ac Wave-2 Wi-Fi Access Point with Phoenix Connector is an outdoor wireless networking solution designed to provide reliable Wi-Fi connectivity in business and commercial environments. Featuring dual-band 2×2:2 MU-MIMO technology, Grandstream GWN7605CLR it delivers aggregate wireless throughput of up to 1.27 Gbps, with speeds of up to 400 Mbps on 2.4 GHz and 867 Mbps on 5 GHz. Its coverage range of up to 150 meters makes it suitable for outdoor wireless deployments.

The GWN7605CLR features IP66-level weatherproof protection, helping it operate in outdoor environments. Grandstream GWN7605CLR it includes two internal dual-band antennas with 4.0 dBi gain on both the 2.4 GHz and 5 GHz bands. Supporting up to 100 concurrent Wi-Fi clients, Grandstream GWN7605CLR it is designed for low-to-medium-density environments that require dependable wireless connectivity for everyday business operations.

For flexible installation and power options, the access point includes two Gigabit Ethernet ports, one supporting PoE input, and a Phoenix connector for a 12V–24V DC power supply. Grandstream GWN7605CLR it supports IEEE 802.3af/at PoE and has a maximum power consumption of 10W. The device supports outdoor metal bar mounting or wall mounting, with mounting kits included.

The GWN7605CLR supports advanced wireless features, including beamforming, OFDM, 256-QAM, band steering, client steering, mesh networking, and 802.11k/v/r wireless roaming. Network management features include VLAN, captive portal, bandwidth limiting, and QoS. Security options include WPA2 and WPA3 authentication methods, MAC filtering, client isolation, secure boot, rogue access point detection, and digital-signature protection.

For network administration, the access point provides an embedded local Web UI controller capable of managing up to 50 local GWN access points. Grandstream GWN7605CLR it also supports GDMS Networking for cloud management and GWN Manager for on-premises management of up to 3,000 access points. With operating temperatures from -30°C to 60°C, humidity tolerance of 5%–95% non-condensing, and FCC, CE, RCM, and IC compliance, the GWN7605CLR is designed for outdoor wireless networking applications.

Key Features

• Dual-Band Wi-Fi 5 Connectivity – Supports IEEE 802.11a/b/g/n/ac Wave 2, with 2×2:2 MU-MIMO and aggregate wireless throughput of up to 1.27 Gbps across the 2.4 GHz and 5 GHz bands.
• Outdoor Weather Protection – Features IP66-level weatherproof protection and an operating temperature range of -30°C to 60°C for outdoor deployment.
• Extended Wireless Coverage – Provides coverage of up to 150 meters and supports up to 100 concurrent Wi-Fi clients, depending on environmental conditions.

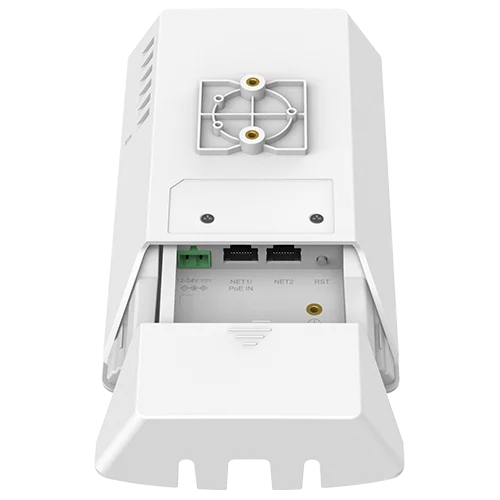

• Flexible Power and Mounting Options – Includes two Gigabit Ethernet ports, IEEE 802.3af/at PoE input, a 12V–24V DC Phoenix connector, and outdoor metal bar or wall mounting.
• Advanced Security and Centralized Management – Supports WPA2/WPA3 security, VLAN, captive portal, mesh networking, wireless roaming, and management through the local Web UI, GDMS Networking, and GWN Manager.

Best Suited For

• Outdoor business networks requiring wireless connectivity in suitable commercial and business environments
• Retail spaces and offices needing extended Wi-Fi coverage for staff and customer devices
• Low-to-medium-density deployments supporting up to 100 concurrent Wi-Fi clients
• Outdoor wireless installations requiring IP66-level weather protection and flexible mounting options
• Businesses and network administrators needing centralized access point management, mesh networking, and wireless roaming

Not Suited For

• Indoor-only installations where a dedicated indoor access point is more appropriate
• Users requiring Wi-Fi 6 or Wi-Fi 7 and their newer wireless capabilities
• High-density environments requiring substantially greater client capacity or throughput
• Users requiring multi-gigabit Ethernet uplinks, as this model provides Gigabit Ethernet ports
• Installations requiring a confirmed coverage distance beyond 150 meters, as actual range varies with environmental conditions and deployment layout
