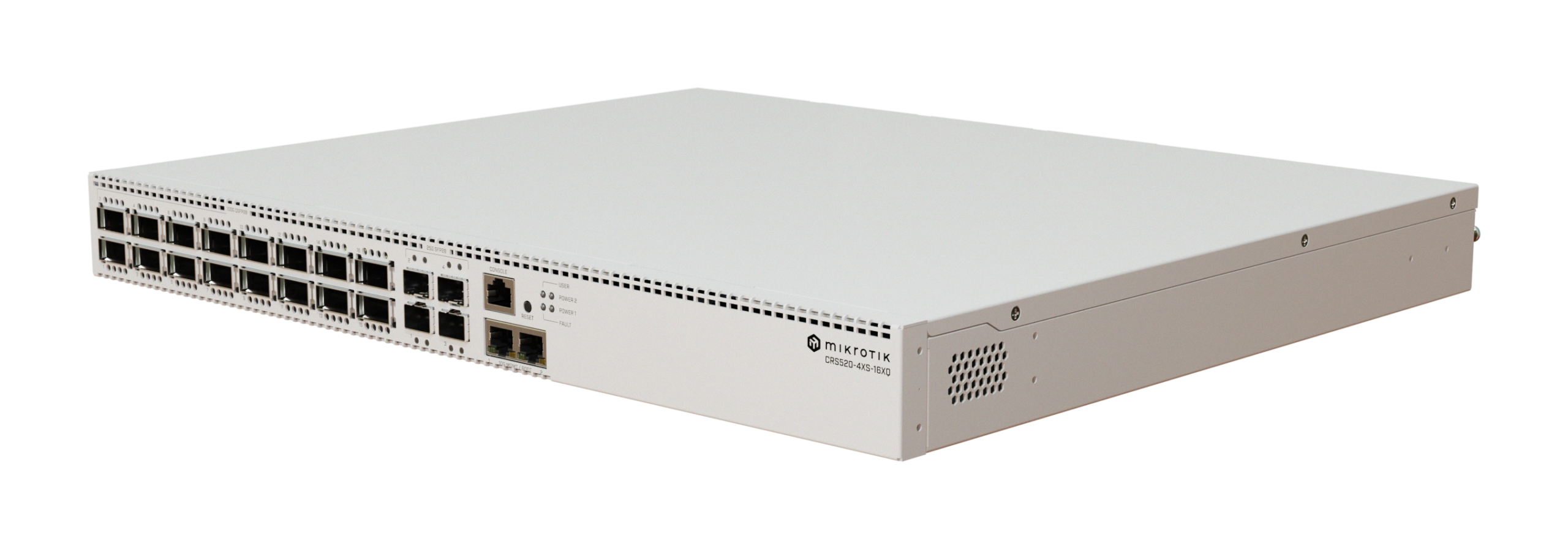

Welcome to the forefront of networking: the future-proof CRS520-4XS-16XQ-RM with extra processing power, 4 GB of DDR4 RAM, and the best price per 100 Gigabit port we’ve seen so far.

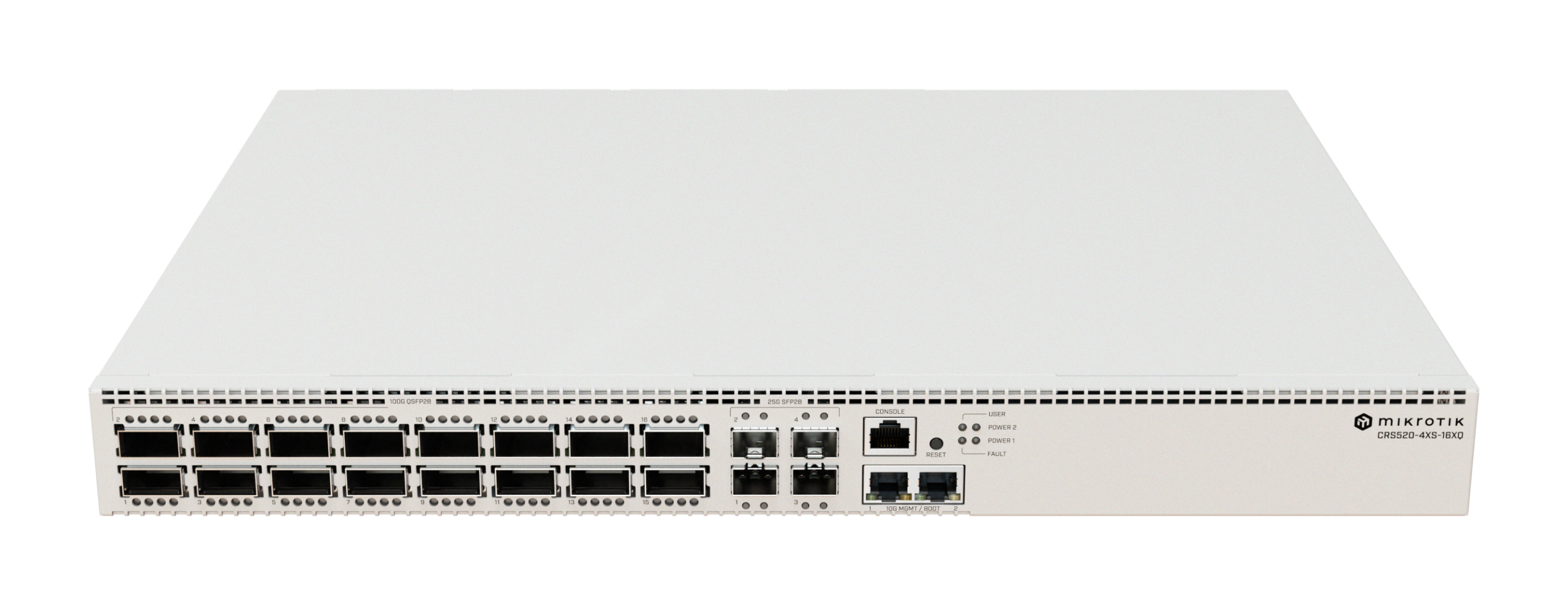

With 16x 100 Gigabit QSFP28 ports, 4x 25 Gigabit SFP28 ports, and an extra pair of 10 Gigabit Ethernet ports, this switch can bring a lot of value to complicated enterprise networks, data centers, multimedia studios, and other setups where you would typically use several devices. Now – a single CRS520 can do the trick!
Avid CCR users might recognize the powerful quad-core ARM CPU running at 2 GHz, and ask – why would a switch need all that power? Two reasons:
1) CRS520 is more than a switch. You can run OSPF/BGP, out-of-band/management VPNs, ACLs, Jumbo frames and even L3HW Offloaded routing;
2) Future-proofing: as our friends at Marvell keep expanding the capabilities of their spectacular switch-chips, our in-house software team is busy exploring ways to add even more Hardware Offloaded features. You can expect software updates that will take the CRS520 to the next level! And all that without any paywalls or subscriptions.

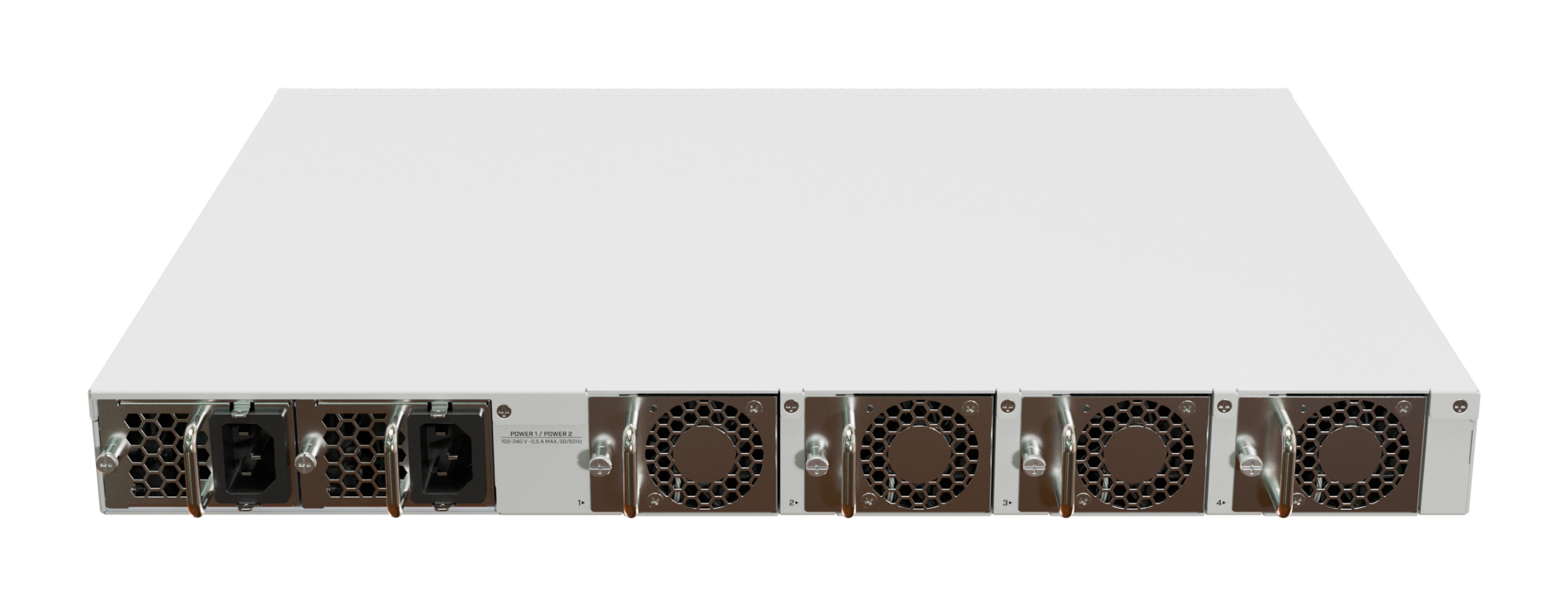

Two hot-swap power supplies and four hot-swap fans for cooling are included. This switch can also be powered by the PW48V-12V150W Hot Swap -48V DC telecom power supply, available separately.
Switching results
CRS520-4XS-16XQ-RM | |||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Switching | Non blocking Layer 2 throughput | 138166.7 | 1677896.4 | 399435.4 | 1636087.4 | 1034826.8 | 529831.3 |
Switching | Non blocking Layer 2 capacity | 138166.7 | 3355792.8 | 399435.4 | 3272174.8 | 1034826.8 | 1059662.6 |
Switching | Non blocking Layer 1 throughput | 138166.7 | 1700003.1 | 399435.4 | 1699997.1 | 1034826.8 | 695403.6 |
Switching | Non blocking Layer 1 capacity | 138166.7 | 3400006.2 | 399435.4 | 3399994.2 | 1034826.8 | 1390807.2 |
Routing | none (L3HW) | 138028.5 | 1676218.1 | 399435.4 | 1636087.4 | 606408.5 | 310481.2 |
Routing | 25 ip filter rules (Fasttrack L3HW) | 138028.5 | 1676218.1 | 399427.4 | 1636054.6 | 577907.3 | 295888.5 |
Ethernet test results
CRS520-4XS-16XQ-RM | AL52400 (2.0 GHz) – all port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 2999.4 | 36424.4 | 5841.9 | 23928.6 | 7976.2 | 4339 |
Bridging | 25 bridge filter rules | 2027.9 | 24626.7 | 2052.5 | 8406.9 | 2048.6 | 1114.4 |
Routing | none (fast path) | 2960.1 | 35947.3 | 5707.7 | 23378.8 | 8538 | 4644.7 |
Routing | 25 simple queues | 2081.5 | 25277.3 | 2114.4 | 8660.7 | 2158.4 | 1174.2 |
Routing | 25 ip filter rules | 1338.6 | 16255.5 | 1340 | 5488.7 | 1334.5 | 725.9 |
- All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
- Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
- Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
