Teltonika TSW030 8-Port Ethernet Switch | 8 × 10/100 Mbps RJ45 | Unmanaged Plug-and-Play | DIN Rail Mount | Industrial Ethernet Switch

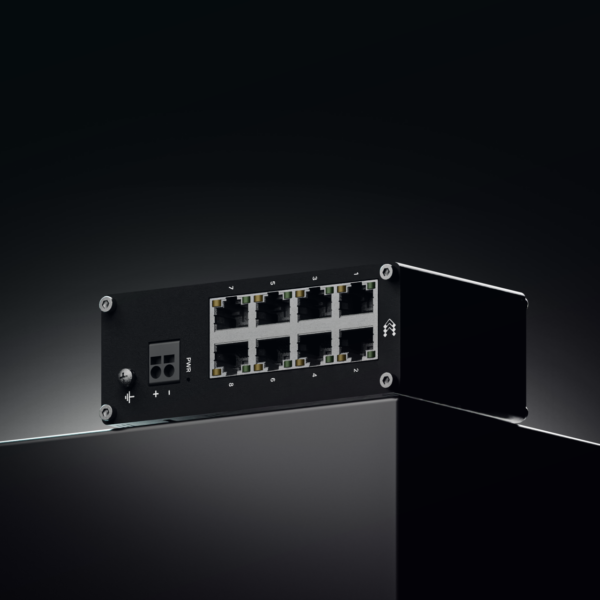

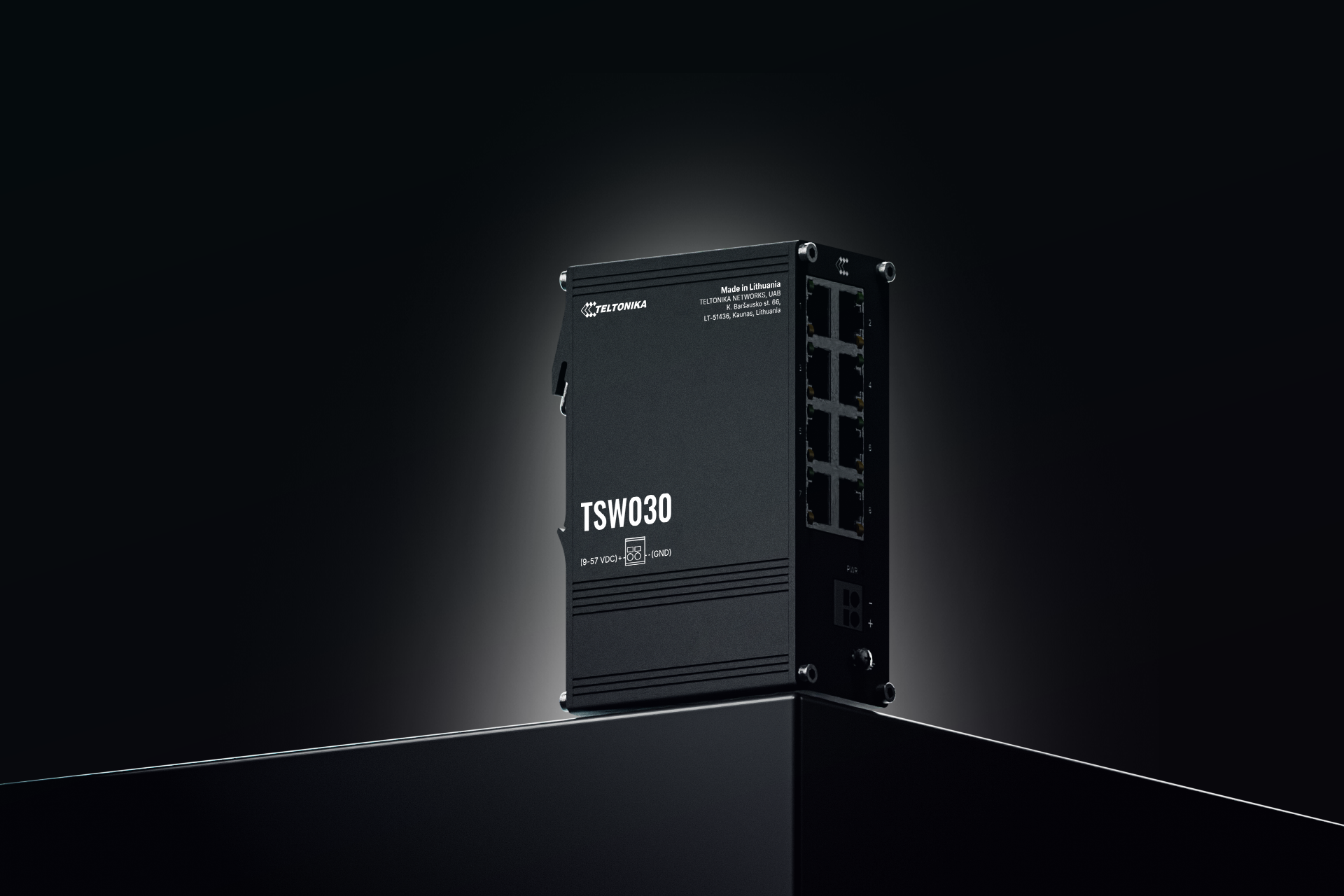

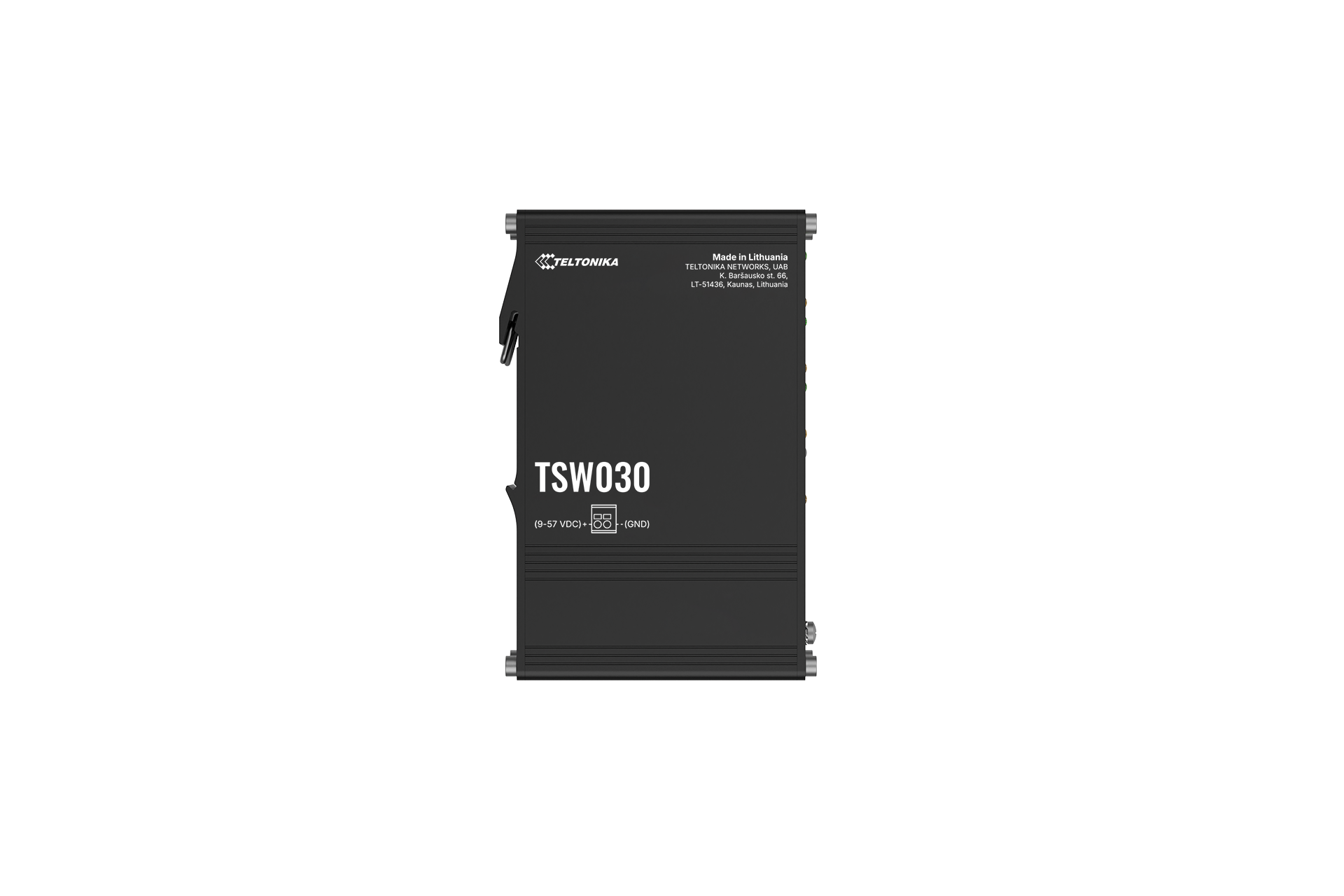

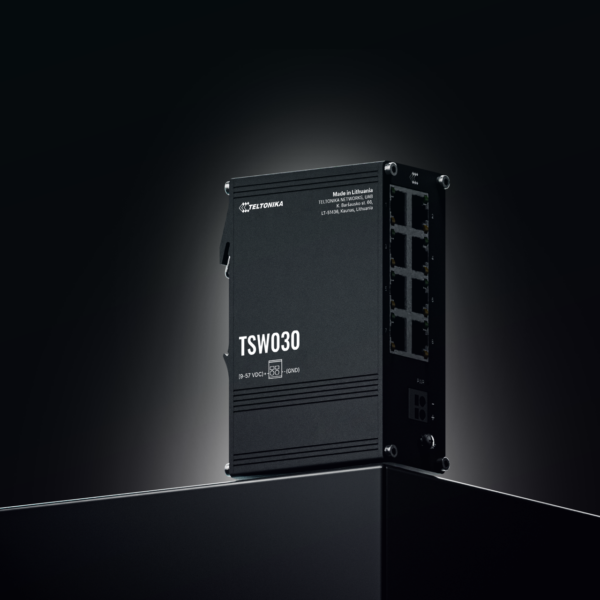

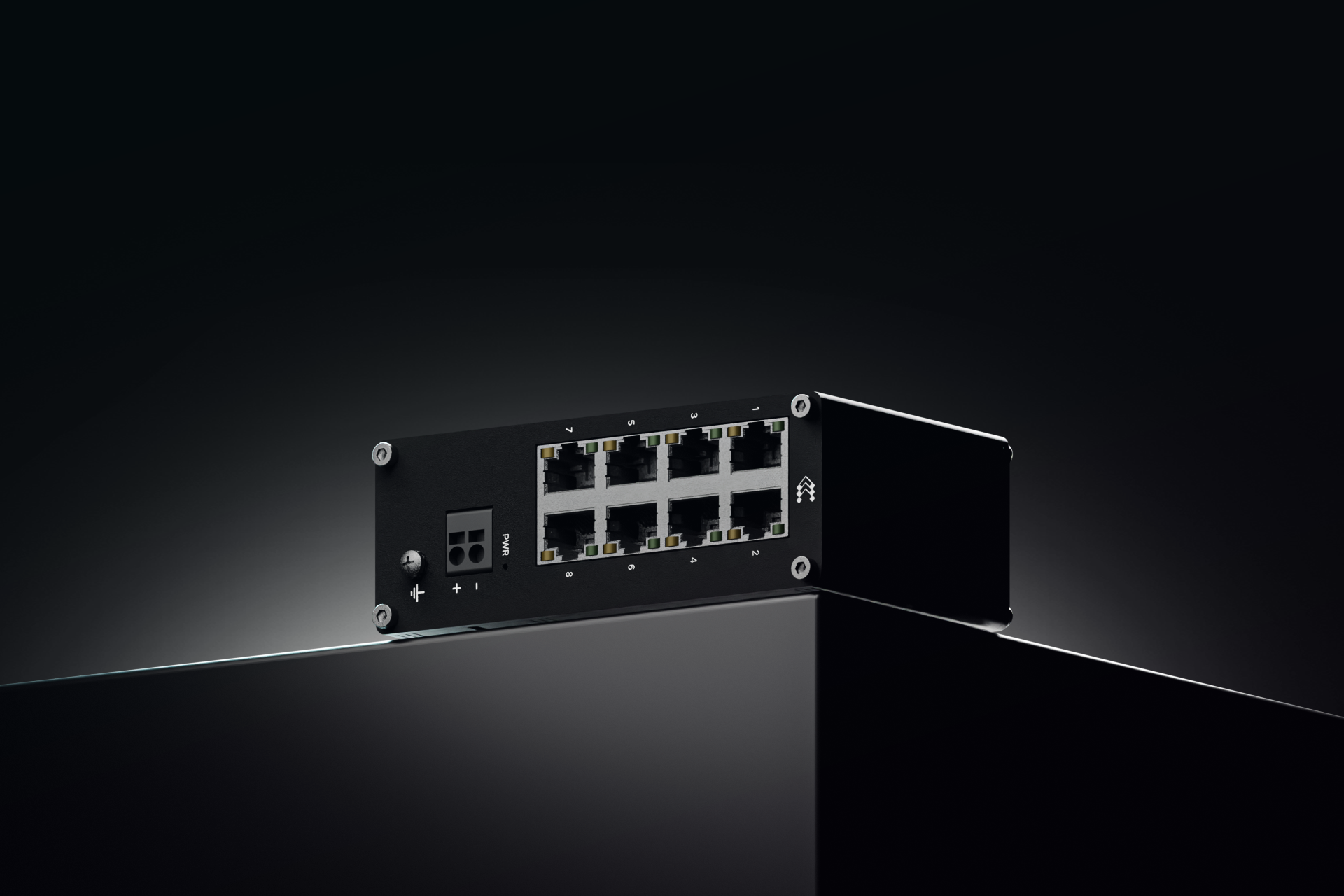

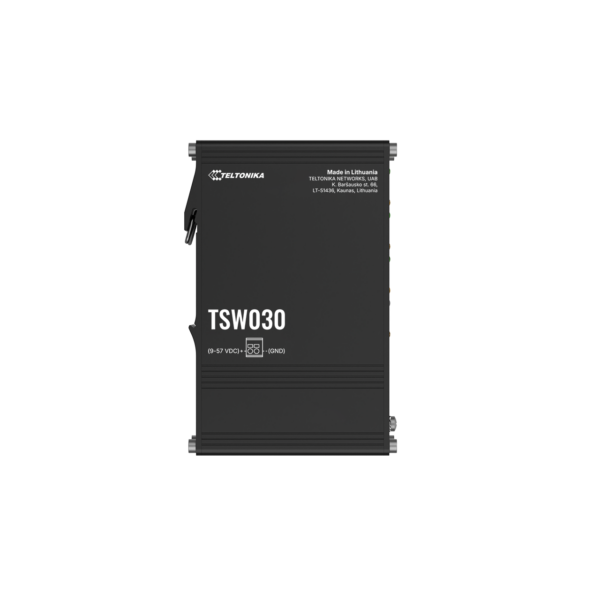

The Teltonika TSW030 is an unmanaged 8-port Ethernet switch designed for reliable and cost-efficient industrial networking. Teltonika TSW030 it provides 8 × 10/100 Mbps RJ45 Ethernet ports with auto MDI/MDIX and plug-and-play operation, allowing up to eight devices to be connected without additional configuration. Its compact design, integrated DIN rail bracket, and low power consumption make it suitable for industrial installations.

The switch supports IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az standards. Teltonika TSW030 it offers 20 Gbps non-blocking bandwidth, a 2K MAC address table, and jumbo frame support up to 9216 bytes. Optional Profinet Class A conformance is available with the applicable order code.

The TSW030 uses a 2-pin industrial DC power socket and supports a wide 7–57 VDC input range with overvoltage, reverse polarity, and surge protection. Power consumption is up to 0.5 W when idle and 1.5 W maximum.

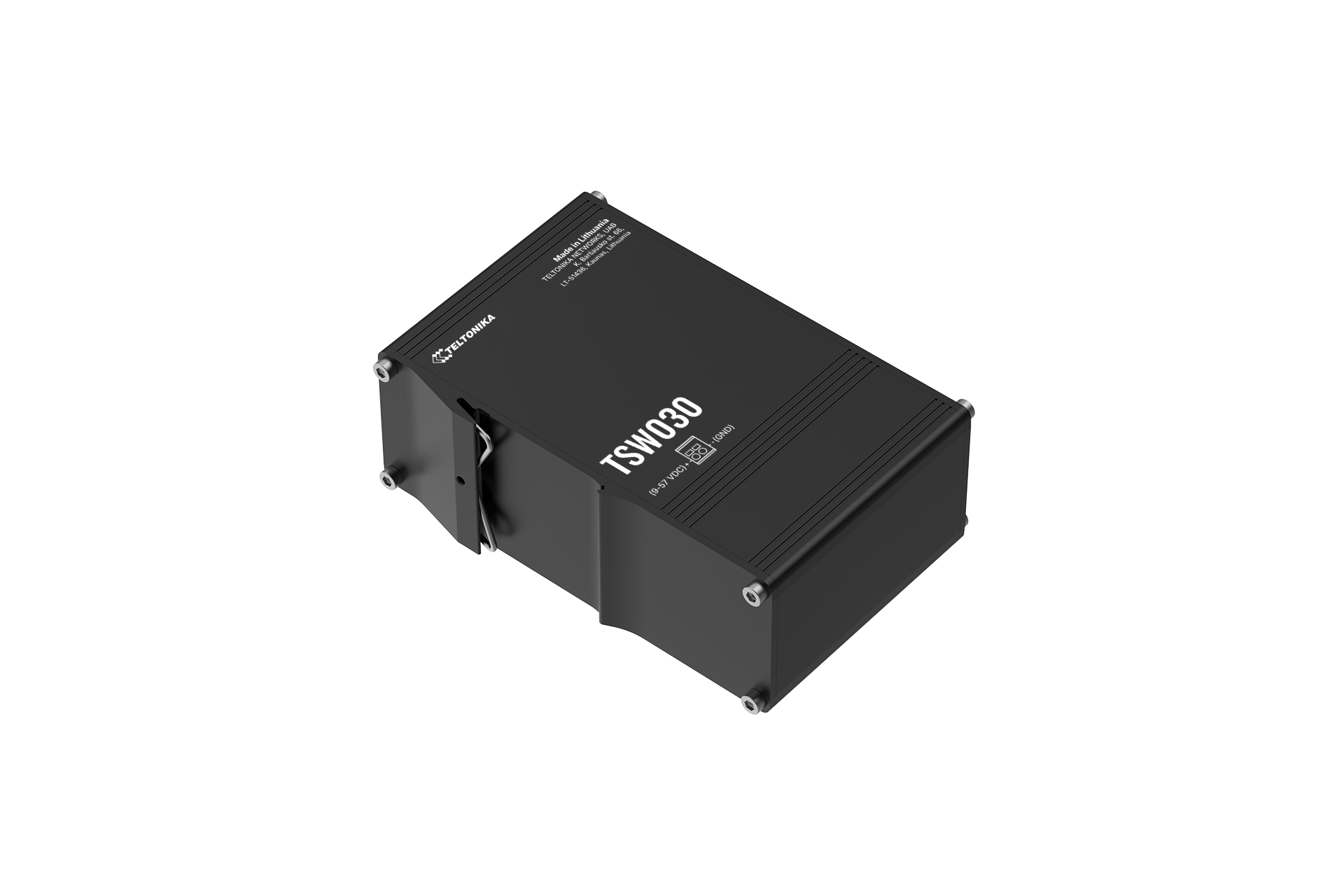

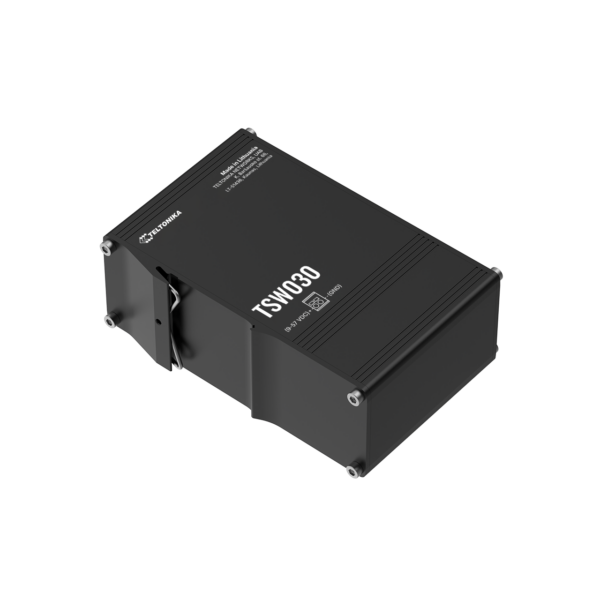

With its anodised aluminium housing, IP30 protection, integrated DIN rail mounting, and operating temperature range of -40°C to 75°C, the TSW030 is designed for dependable operation in industrial environments.

Key Features

1. 8 × Ethernet Ports: Provides 8 × RJ45 ports supporting 10/100 Mbps Ethernet with auto MDI/MDIX.
2. Plug-and-Play Operation: Unmanaged design requires no additional configuration for network connectivity.
3. High Switching Capacity: Offers 20 Gbps non-blocking bandwidth, 2K MAC address table, and jumbo frame support up to 9216 bytes.
4. Flexible Power Input: Supports 7–57 VDC through a 2-pin industrial power connector with protection features.
5. Low Power Consumption: Consumes up to 0.5 W when idle and 1.5 W at maximum.

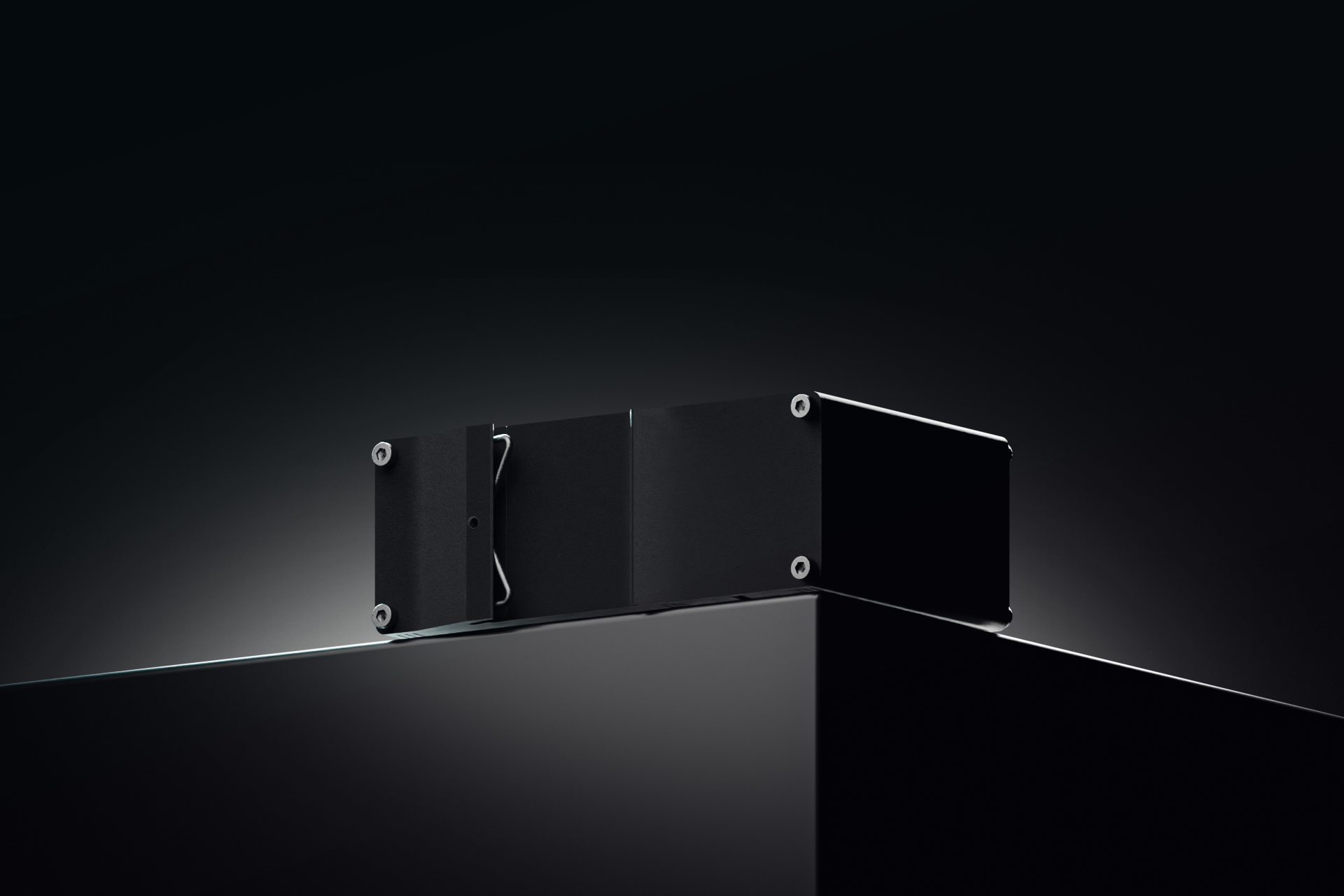

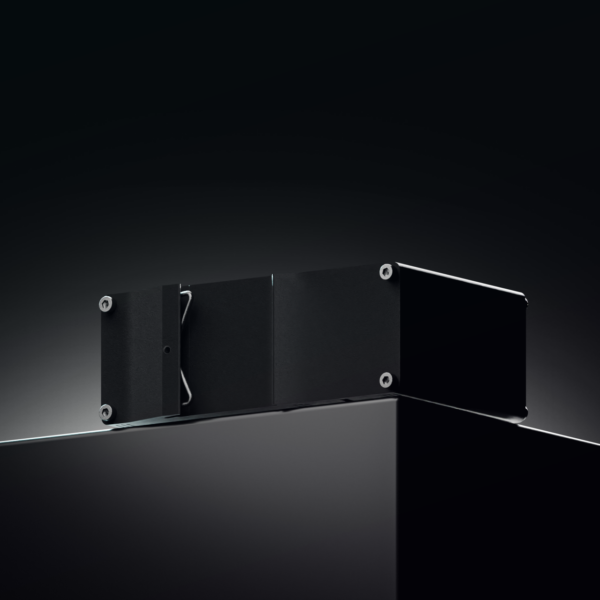

6. Industrial-Ready Design: Features an anodised aluminium housing, integrated DIN rail bracket, IP30 rating, and -40°C to 75°C operating temperature.

Best Suited For

1. Industrial Ethernet network installations.
2. Connecting up to eight 10/100 Mbps Ethernet devices.
3. DIN rail-mounted industrial networking applications.
4. Plug-and-play network deployments requiring simple installation.
5. Industrial environments requiring a wide DC input voltage range.

Not Suited For

1. Networks requiring Gigabit Ethernet connectivity.
2. Managed network applications requiring advanced switch configuration.
3. Installations requiring more than eight Ethernet ports.
4. Outdoor applications requiring protection higher than IP30.
5. Networks requiring standard IEEE 802.3af, 802.3at, or 802.3bt PoE.
