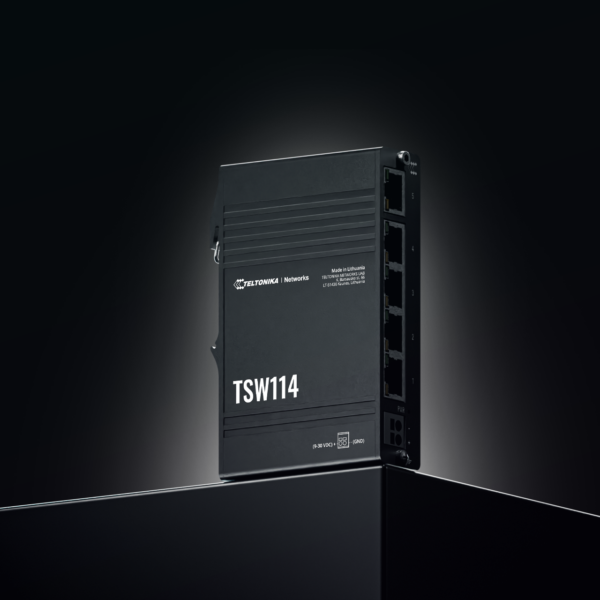

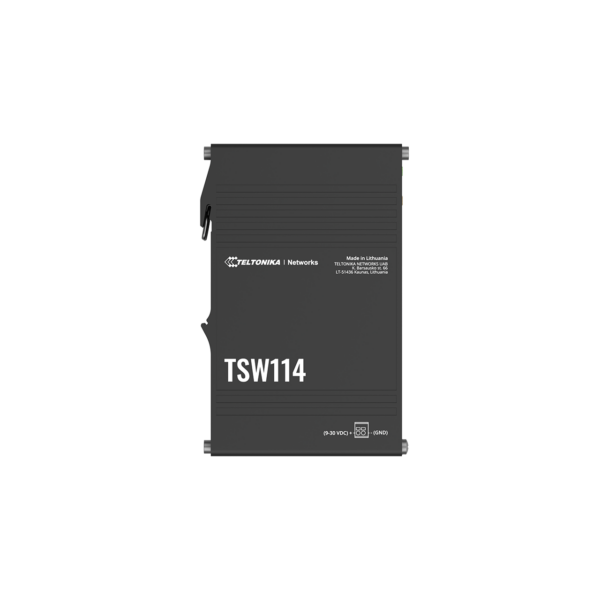

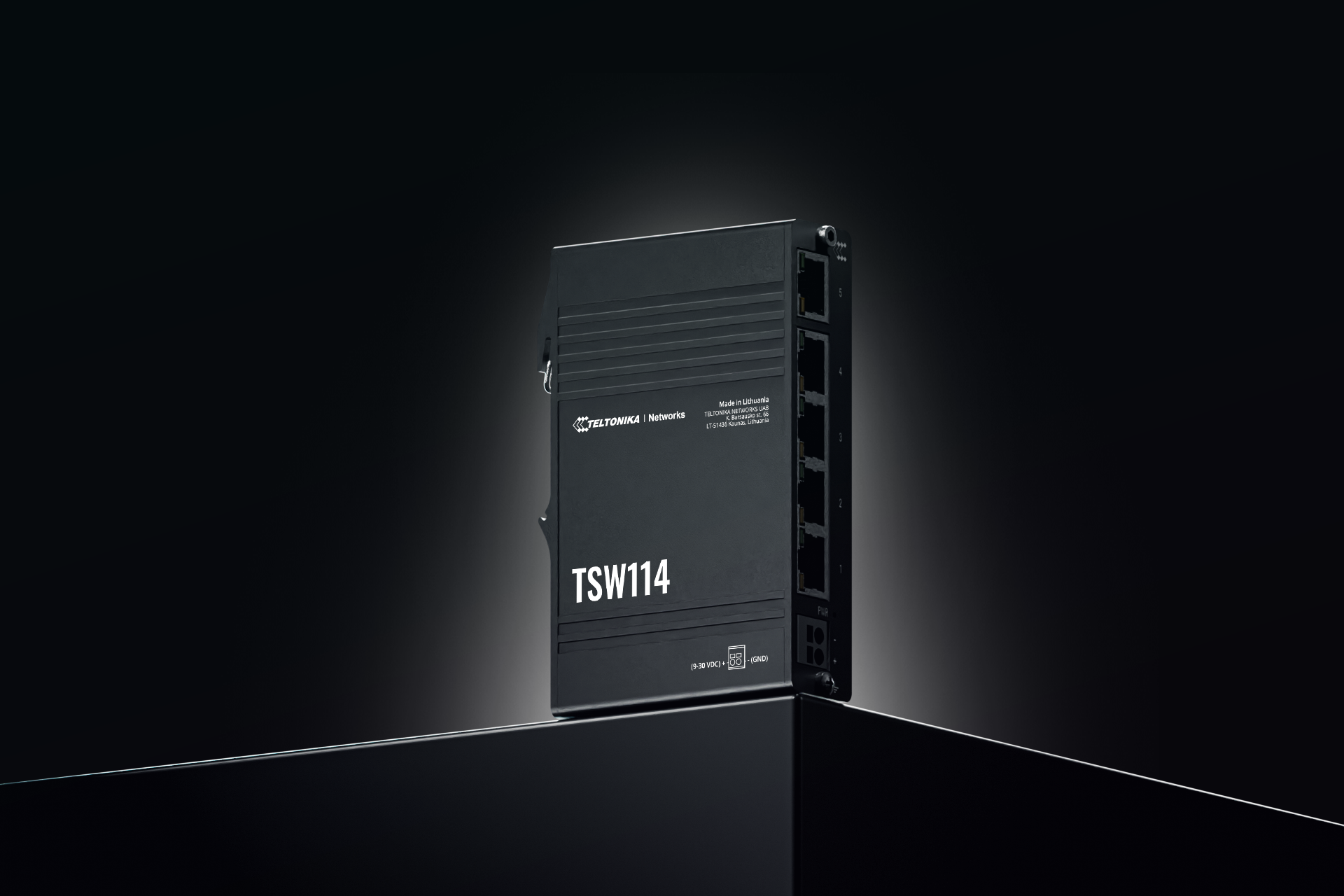

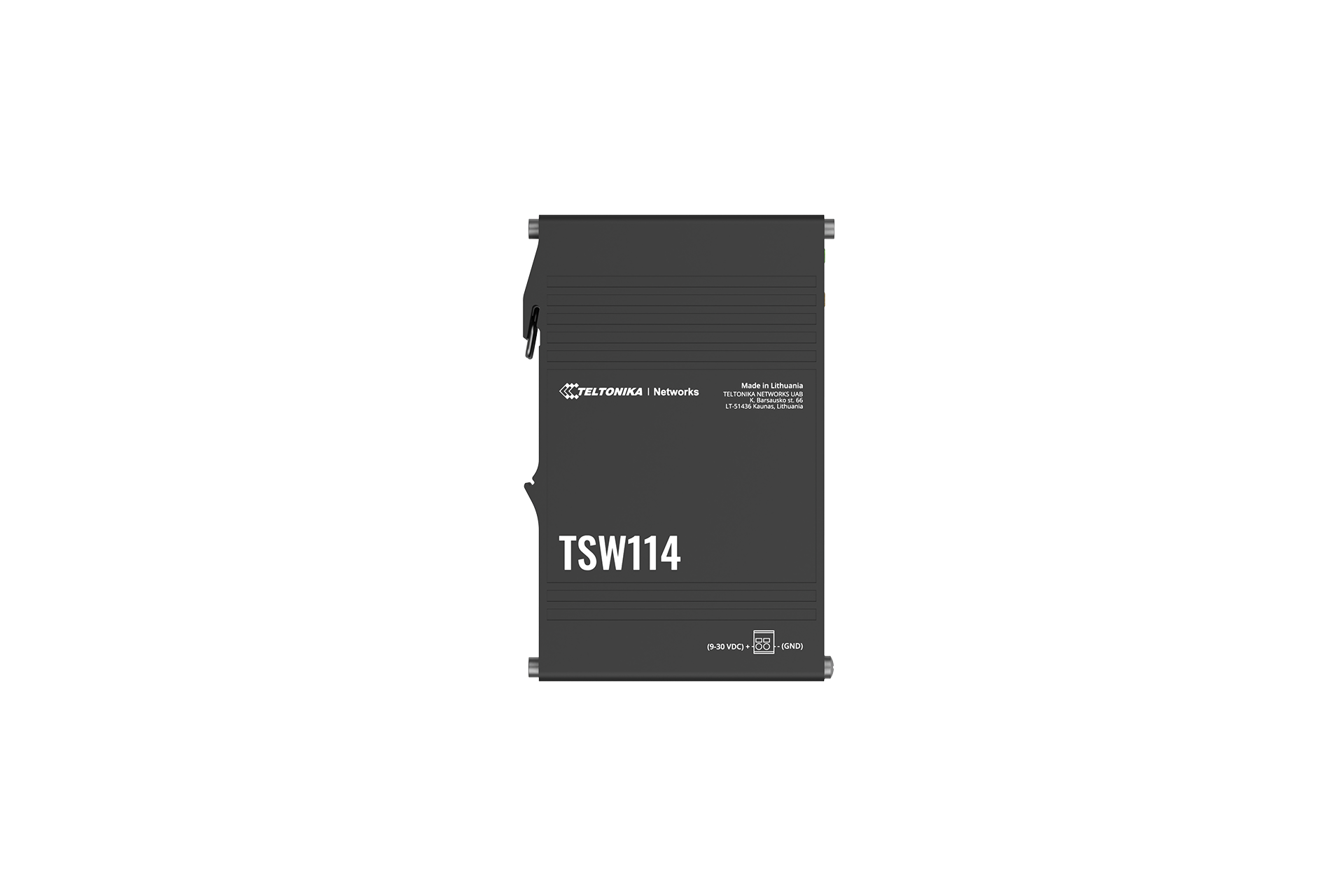

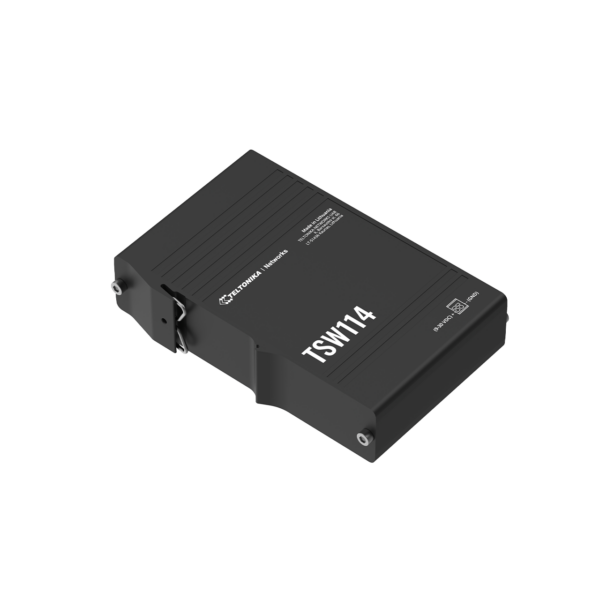

Teltonika TSW114 Gigabit DIN Rail Ethernet Switch | 5 × Gigabit Ethernet Ports | 10/100/1000 Mbps | Plug & Play | Industrial Aluminum Housing | IP30

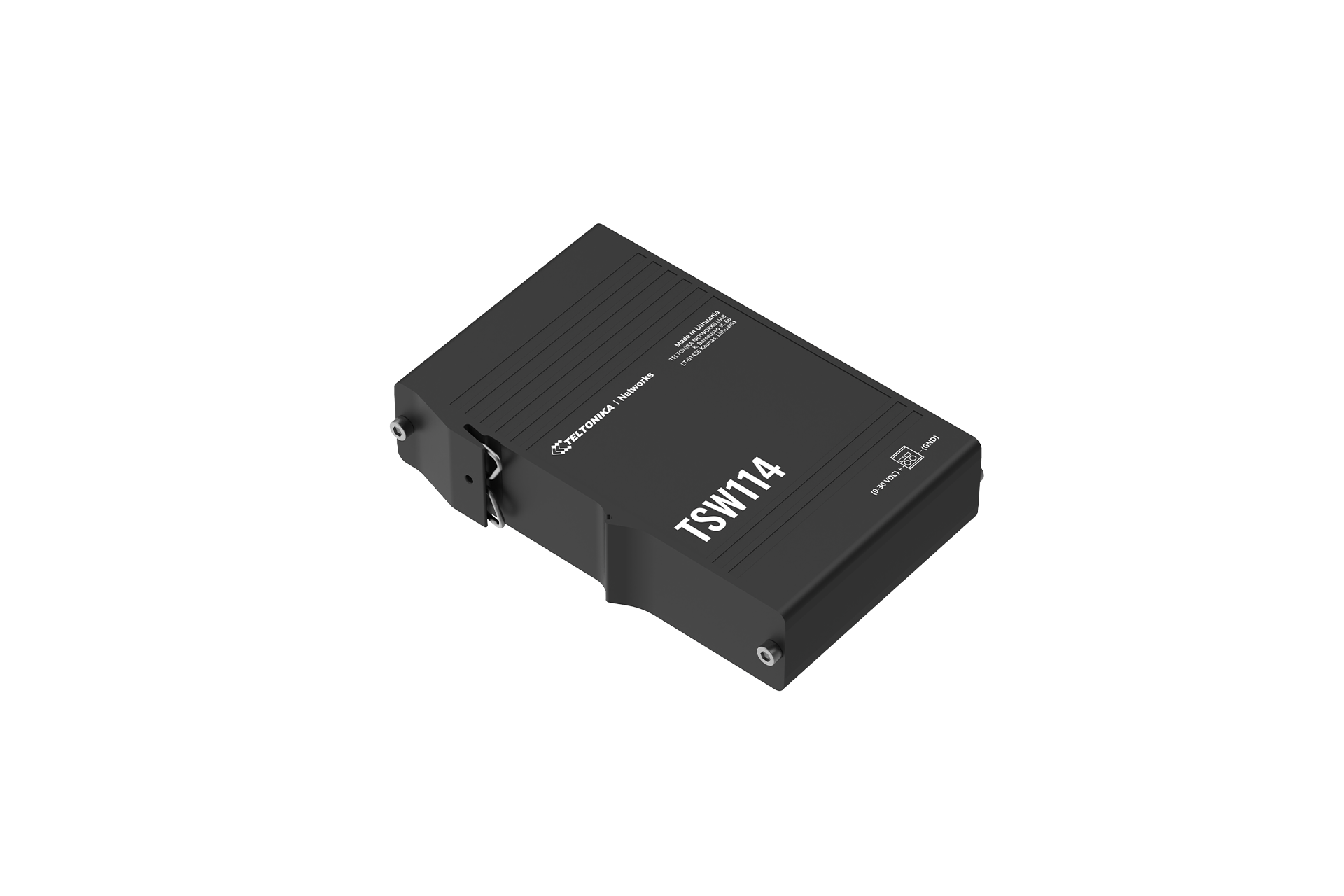

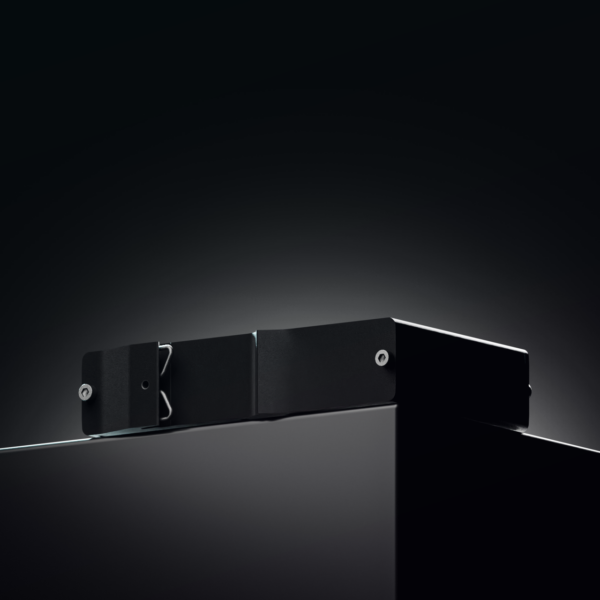

The Teltonika TSW114 is a compact, industrial Gigabit Ethernet switch designed for reliable and simple network connectivity. Teltonika TSW114 it features 5 × 10/100/1000 Mbps RJ45 ports with auto MDI/MDIX and plug-and-play operation, allowing network devices to be connected without additional configuration. Teltonika TSW114 its rugged anodised aluminium housing and integrated DIN rail bracket support convenient industrial installation.

The switch provides 10 Gbps non-blocking bandwidth, a 2K MAC address table, and jumbo frame support up to 9216 bytes. Teltonika TSW114 it supports IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az standards. Optional Profinet Class A conformance is available with the applicable order code.

The TSW114 uses a 2-pin industrial DC power connector with a 9–30 VDC input range. Teltonika TSW114 it also supports passive PoE through the ETH1 port, but is not compatible with IEEE 802.3af, 802.3at, or 802.3bt PoE standards. Power consumption is up to 0.3 W when idle and 2.3 W maximum.

With an operating temperature range of -40°C to 75°C, 5% to 95% non-condensing humidity, and IP30 protection, the TSW114 is designed for industrial environments where compact size, Gigabit connectivity, and flexible mounting are required.

 Key Features

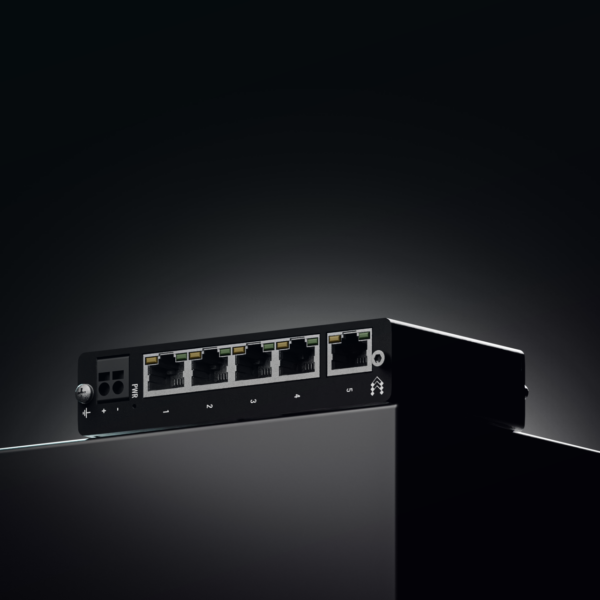

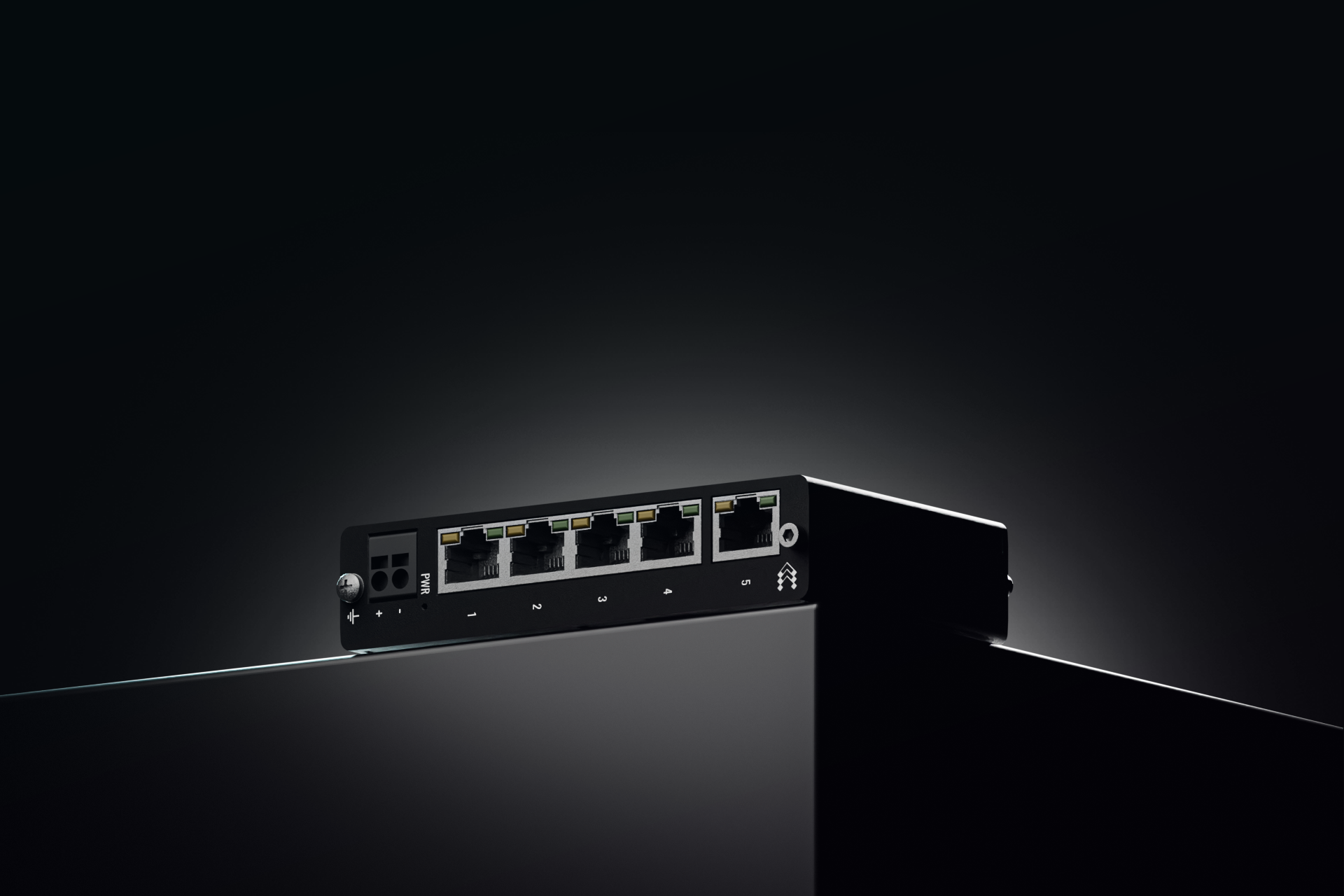

1. 5 × Gigabit Ethernet Ports: Provides 5 × RJ45 ports supporting 10/100/1000 Mbps connectivity with auto MDI/MDIX.
2. Plug-and-Play Operation: Requires no additional configuration for straightforward network deployment.
3. 10 Gbps Non-Blocking Bandwidth: Includes a 2K MAC address table, 128 KB packet buffer, and jumbo frame support up to 9216 bytes.
4. Industrial Protocol Support: Supports IEEE 802.3i, 802.3u, 802.3ab, 802.3x, and 802.3az standards, with optional Profinet Class A conformance.
5. Flexible Power Options: Supports 9–30 VDC input and passive PoE through ETH1, with PoE compatibility limited as specified in the datasheet.

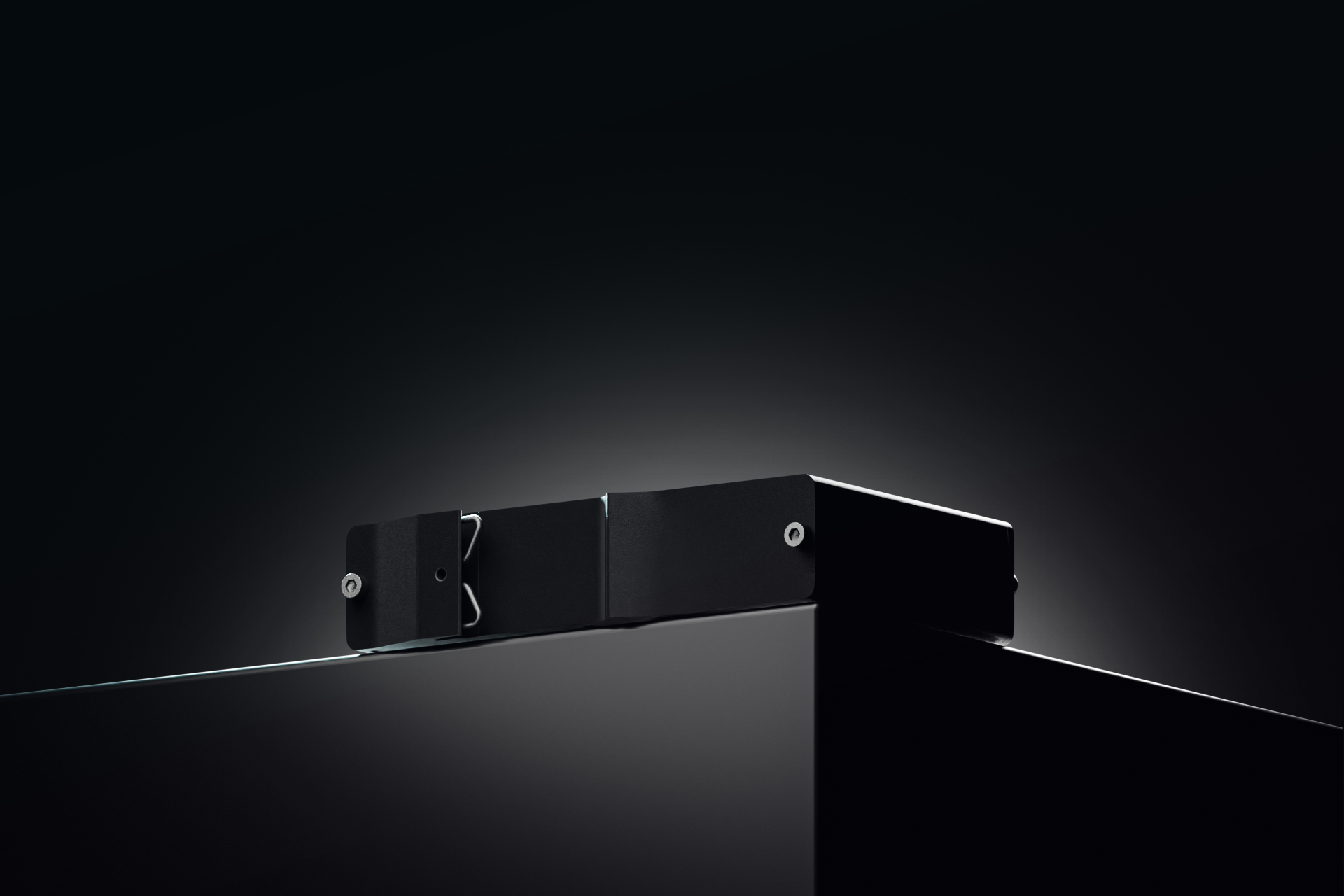

6. Compact Industrial Design: Features an anodised aluminium housing, integrated DIN rail bracket, IP30 rating, and -40°C to 75°C operating temperature range.

Best Suited For

1. Industrial Ethernet networking applications.
2. Gigabit network installations requiring 5 Ethernet ports.
3. DIN rail-mounted industrial deployments.
4. Plug-and-play network setups requiring simple installation.
5. Industrial environments requiring compact and durable networking hardware.

Not Suited For

1. Networks requiring more than 5 Ethernet ports.
2. Applications requiring managed switch configuration features.
3. Networks requiring standard IEEE 802.3af, 802.3at, or 802.3bt PoE.
4. Outdoor installations requiring protection higher than IP30.
5. Applications requiring Ethernet speeds above 1 Gbps.
